By Capsa Healthcare
TruAir Scope Storage Wall Cabinet
A wall cabinet for small-diameter endoscopes, especially scopes without an integral light guide cable or with a removable video or light cord. For ENT suites, endoscopy suites, hospitals, ambulatory surgery centres and operating rooms.
- Up to 8 bronchial or ENT scopes without light guides, or up to 4 with light guides, depending on your infection control policy
- Wall cabinet of 19.25 × 11.75 × 48.75 in (48.9 × 29.8 × 123.8 cm)
- High-density polyethylene (HDPE), chosen by Capsa for easier cleaning
- TruHEPA filter available on the M1201HG-HEPA model
A wall cabinet for small-diameter scopes
Capacity set by your policy
Capsa gives two capacities: up to 8 bronchial or ENT scopes without light guides, or up to 4 with light guides, depending on your infection control policy.
HDPE for cleaning
The cabinet is made of high-density polyethylene, which Capsa chose for easier cleaning, with a locking hinged glass door.
Filtered air if you need it
Choose the M1201HG-HEPA to add a TruHEPA filter to the cabinet. The M1201HG is the model without it.
Features of this wall cabinet
Keyed or keyless locking
A keyed lock is standard on the glass door. A keyless lock is available as an option.
Centre separator scope rack
A centre separator scope rack comes standard inside the cabinet.
Lighting and readings (options)

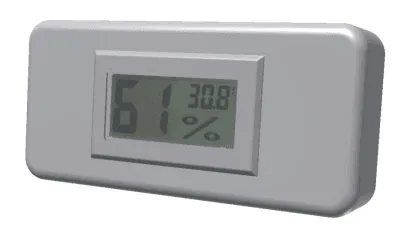

Door-activated LED lighting and a temperature and humidity gauge can be added to the cabinet.
White or stainless steel
The cabinet is white as standard; a stainless steel finish is available as an option.
See the TruAir range
Capsa presents its TruAir scope system: cabinets and carts to store, transport and protect endoscopy equipment.
Specifications and configuration
M1201HG
Up to 8Bronchial or ENT scopes without light guides
- Scopes with light guides
- Up to 4
- Width
- 19.25 in (48.9 cm)
- Depth
- 11.75 in (29.8 cm)
- Height
- 48.75 in (123.8 cm)
- Models
- M1201HG; M1201HG-HEPA, with TruHEPA filter
- Construction
- HDPE plastic, locking hinged glass door
- Colour
- White
- Standard equipment
- Keyed lock, centre separator scope rack
- Options
- Door-activated LED lighting, keyless lock, temperature and humidity gauge, stainless steel finish
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
Accessories
Name the ones you need in your quote request.
- Door-activated LED lighting
- Keyless lock
- Temperature and humidity gauge
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the TruAir wall cabinet
Where should a drying or storage cabinet be located?
Your reprocessing layout and your infection prevention policy decide the location. For this wall cabinet, plan a wall space of 19.25 in (48.9 cm) wide by 48.75 in (123.8 cm) high; it projects 11.75 in (29.8 cm). The floor-standing TruAir storage and drying cabinets stand 93.75 in (238.1 cm) high, and their power cord leaves the top right of the cabinet for a 120 V outlet.
Is the TruAir wall cabinet compatible with all flexible endoscope types?
No. Capsa designed it for small-diameter endoscopes, especially scopes without an integral light guide cable or with a removable video or light cord. It holds up to 8 bronchial or ENT scopes without light guides, or up to 4 with light guides. For other flexible endoscopes, the TruAir storage and drying cabinets hold 4 to 18.
Does the TruAir wall cabinet have a HEPA filter?
As an option. The M1201HG-HEPA model adds a TruHEPA filter; the M1201HG is the model without it. If you choose the filter, plan its replacement: the TruHEPA filter maintenance package delivers a new filter every six months.
How much does the TruAir wall cabinet cost?
The price depends on the model, with or without the TruHEPA filter, and on the options, such as the keyless lock or the stainless steel finish. Request a quote and a representative replies within two business days.
