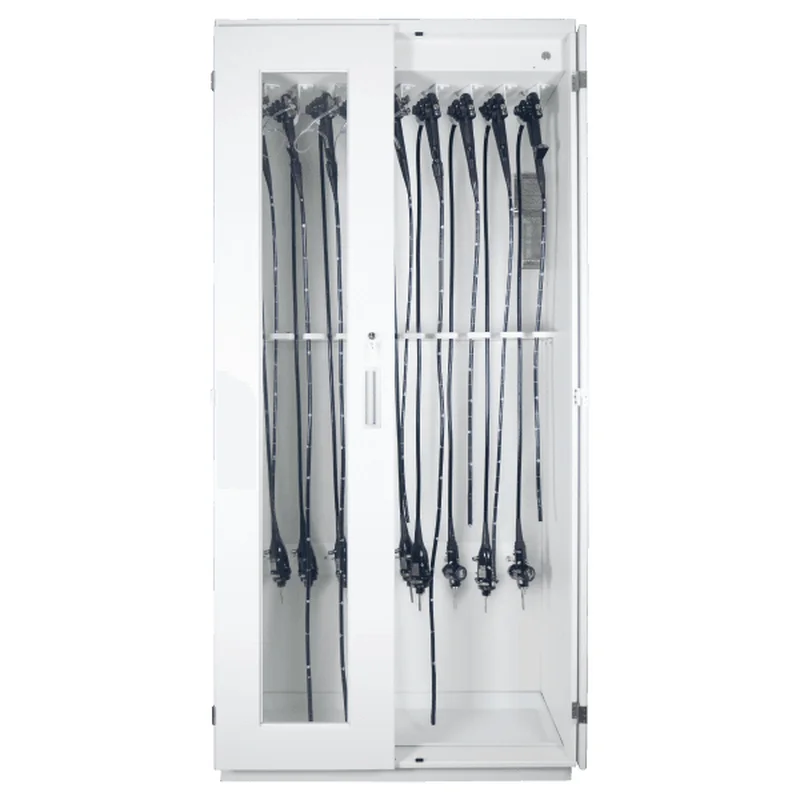

TruAir Endoscope Drying Cabinet
A forced-air drying cabinet for flexible endoscopes, for endoscopy suites, hospitals, ambulatory surgery centres and operating rooms. HEPA-filtered air flows through each scope channel while the scopes hang in the cabinet. Capsa states that the cabinet is designed to follow the ST91 guidelines.

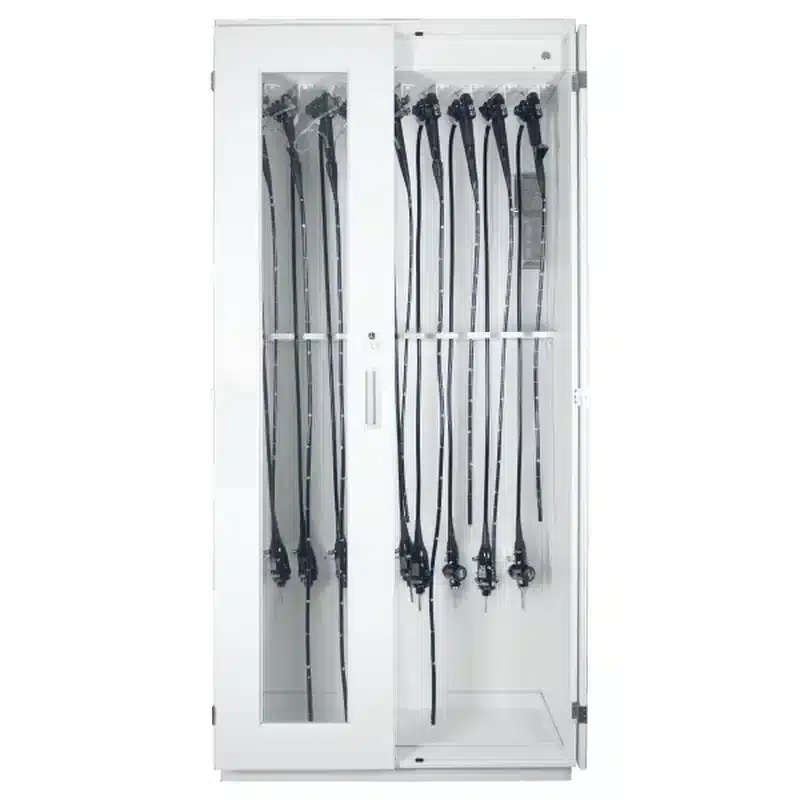

- Holds 4 to 18 flexible endoscopes, in a half-width or full-width cabinet
- Channel drying at 6 L/min minimum per scope, on integrated pump models

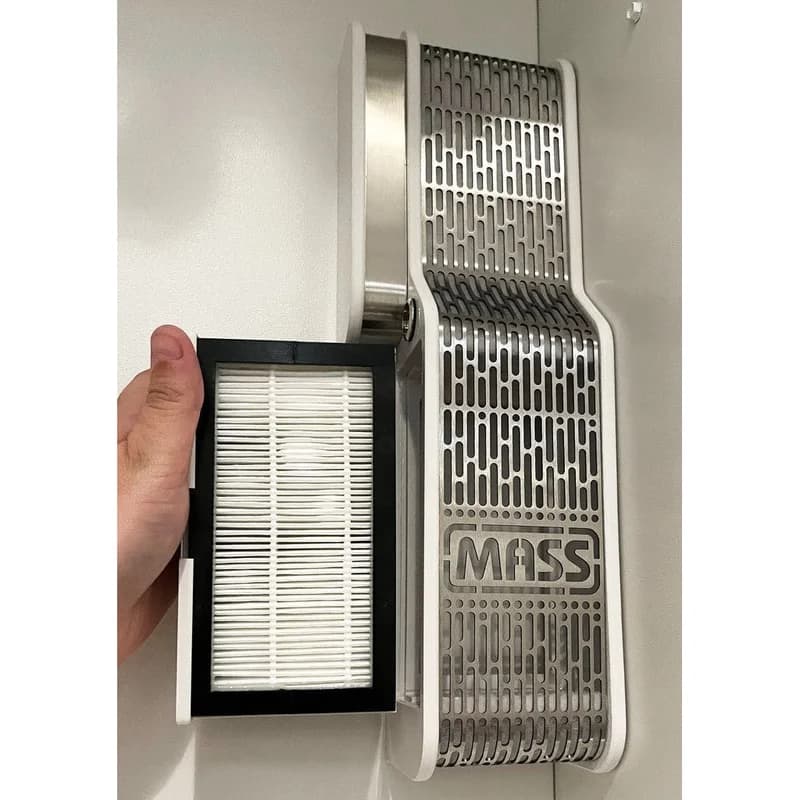

- TruHEPA filtered air, rated at 99.97% of particles down to 0.3 µm, with positive pressure in the cabinet
- Integrated HEPA air pump (DRY models) or connection to your hospital air (HA models)
Air through every channel

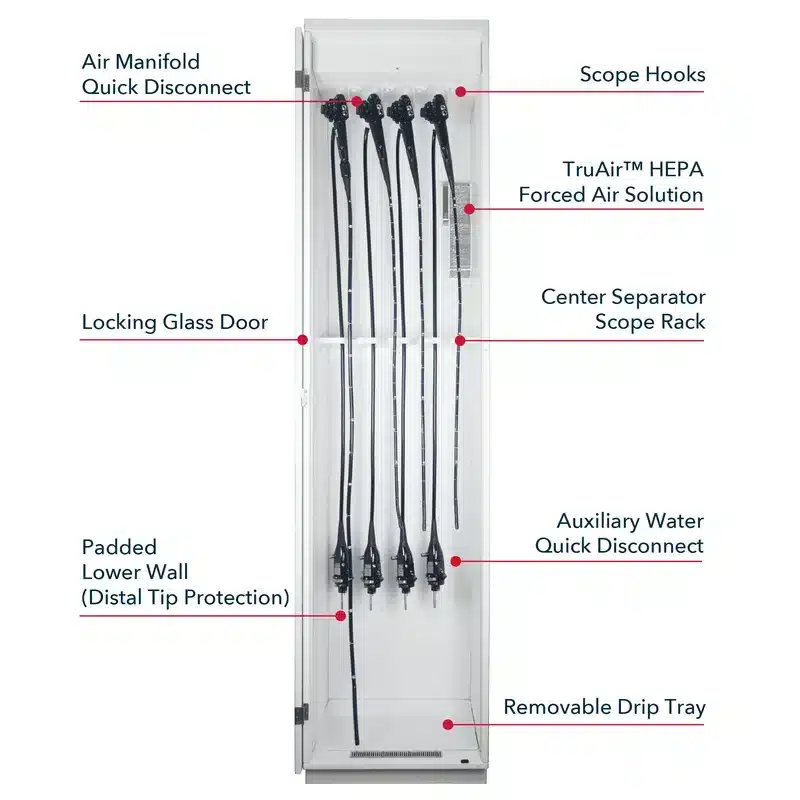

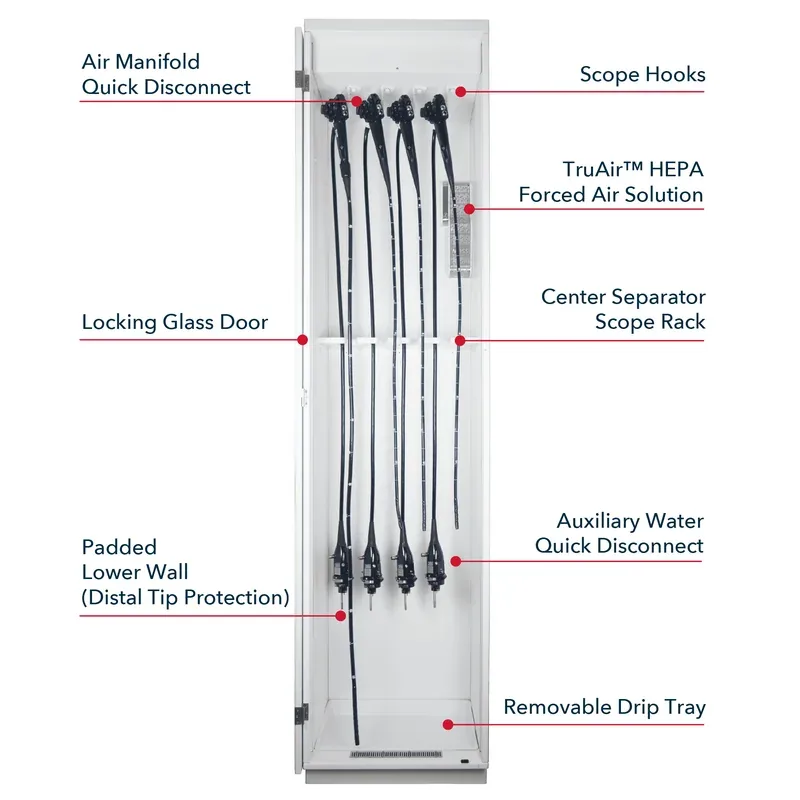

Each scope connects to the air manifold by a quick disconnect. On integrated pump models, air reaches each scope at 6 L/min minimum, at no more than 4 psi (27.6 kPa).
DRY models have their own air pump with a HEPA filter. HA models connect to your hospital air; that integration is sold separately.

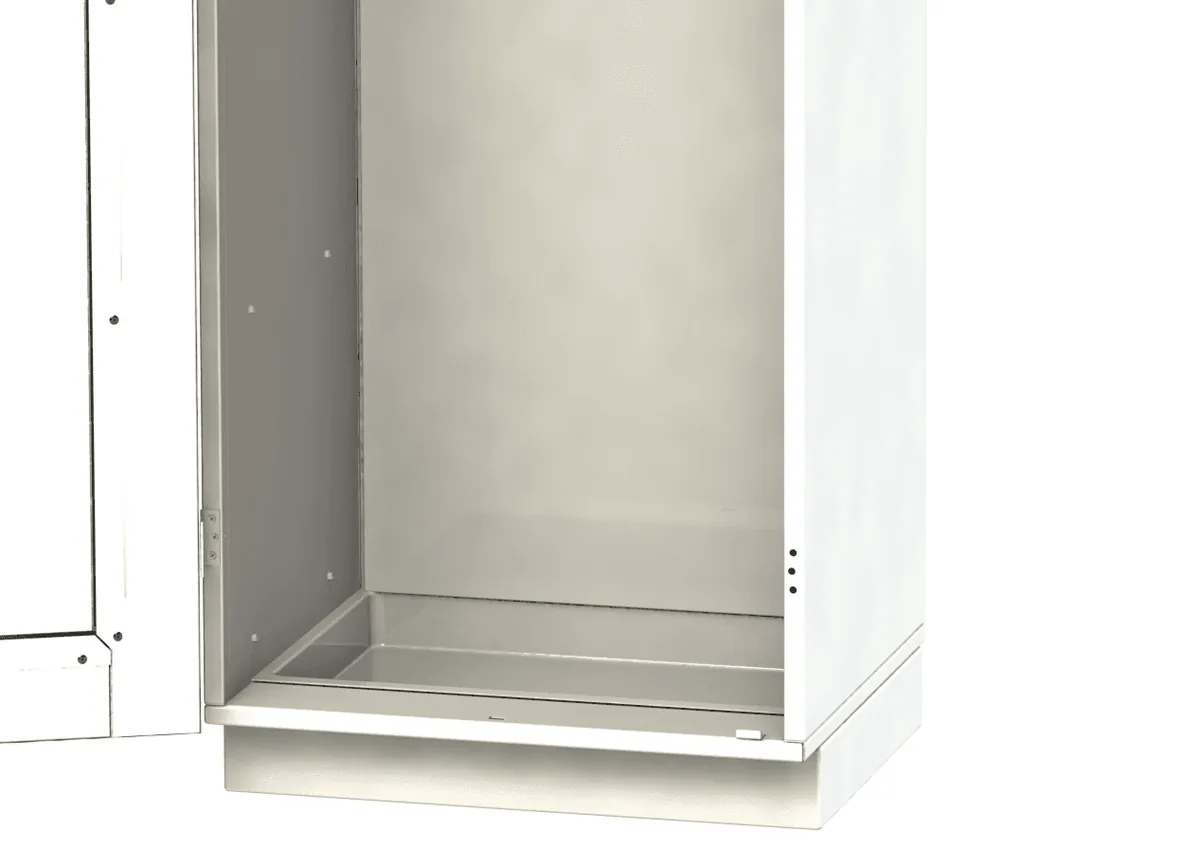

A padded lower back wall protects the distal tips, and a removable drip tray sits at the bottom of the cabinet.

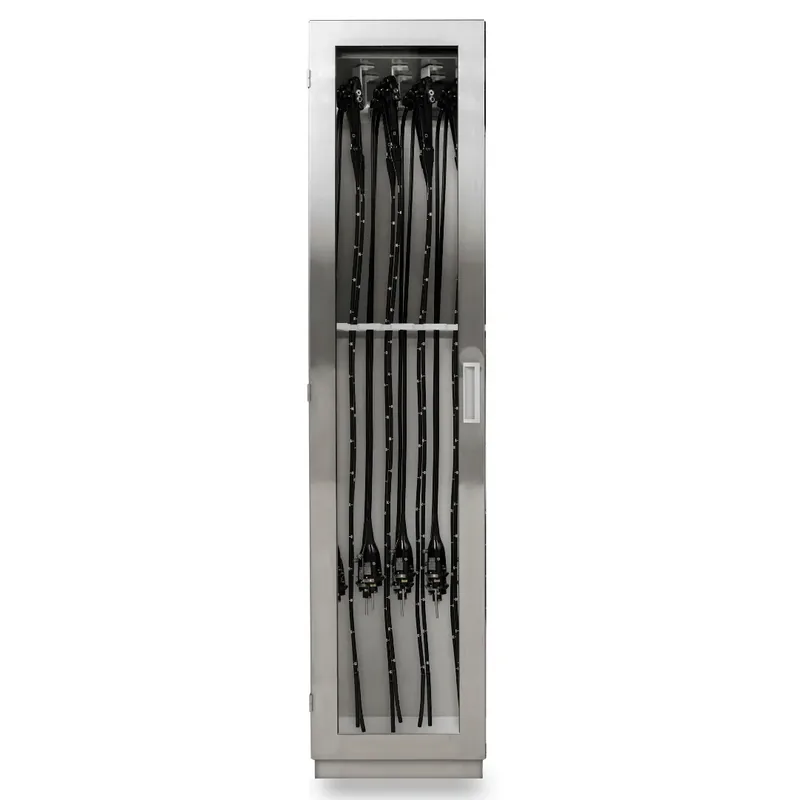

Powder-coated metal in bright white, or stainless steel. Capsa rates the integrated pump model at 45 dB.
Features of this drying cabinet
Reusable drying connectors
Reusable connectors, auxiliary water connectors included, link each scope to the air supply. They are sold separately.
Rotating scope hooks
Scopes hang from rotating hooks at the front of the cabinet, with a centre separator scope rack below.

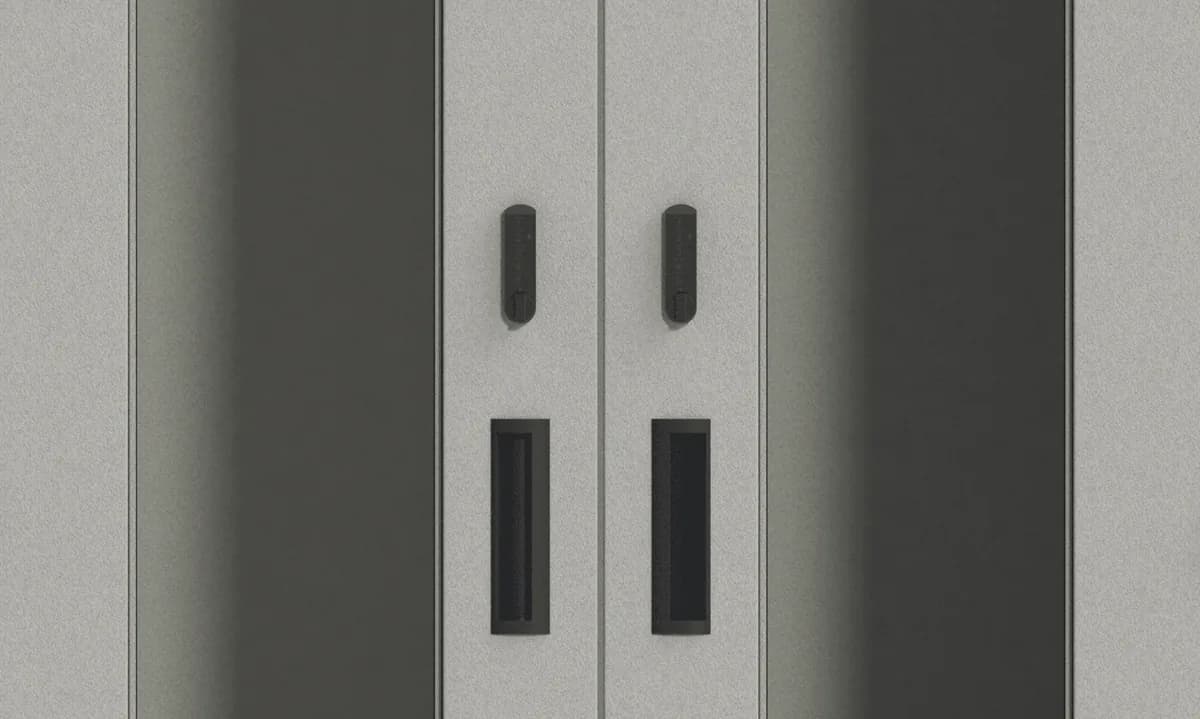

Keyed or keyless locking
Locking hinged glass doors with a keyed lock; a keyless lock is an option. On HA models, the locking glass doors are an option.
Lighting and readings (options)

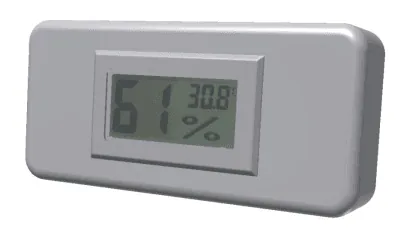

Door-activated LED lighting and a temperature and humidity gauge can be added to the cabinet.
Ready for the Scope Tracker
The TruAir Scope Tracker tablet mounts on the drying cabinet to follow drying time and hang time. It is sold separately.
See the TruAir drying cabinet
Capsa presents the TruAir scope drying cabinet.
Specifications and configuration
Half width
21.625 in (54.9 cm)Width
- Integrated HEPA pump (DRY)
- SAS-4P-DRY, SAS-8P-DRY
- Hospital air (HA)
- SAS-4P-HA, SAS-8P-HA
Full width
40.875 in (103.8 cm)Width
- Integrated HEPA pump (DRY)
- SAS-9P-DRY, SAS-18P-DRY
- Hospital air (HA)
- SAS-9P-HA, SAS-18P-HA
Same on both widths
- Depth
- 18.75 in (47.6 cm)
- Height
- 93.75 in (238.1 cm)
- Capacity
- 4 to 18 flexible endoscopes, depending on the model
- Air supply, DRY models
- Air pump with HEPA filter on the upper manifold, and HEPA filter fan in the cabinet
- Air supply, HA models
- Hospital air integration (sold separately), and HEPA filter fan in the cabinet
- Air flow
- 6 L/min minimum per scope (DRY models)
- Air pressure
- 4 psi (27.6 kPa) maximum (DRY models)
- Filtration
- 99.97% of particles down to 0.3 µm (pump and cabinet on DRY models, cabinet on HA models)
- Noise
- 45 dB (DRY models)
- Electrical
- 120 V wall plug, 10 ft (3 m) cord leaving the top right of the cabinet
- Power consumption
- 128 W (DRY models)
- Standard equipment
- Air manifold with quick disconnect, front rotating scope hooks, centre separator scope rack, removable drip tray, padded lower back wall, keyed lock, slope top on the SAS-18P-DRY
- Construction and finishes
- Powder-coated metal in bright white, or stainless steel; locking hinged glass doors (option on HA models)
- Scope connectors
- Reusable, auxiliary water connectors included, sold separately
- Options
- Temperature and humidity gauge, keyless lock, door-activated LED lighting
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
Accessories
Name the ones you need in your quote request.
- Door-activated LED lighting
- Keyless lock
- Temperature and humidity gauge
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the TruAir drying cabinet
How should endoscopes be dried?
Follow the endoscope manufacturer’s instructions for use and your facility’s reprocessing protocol. In the TruAir drying cabinet, each scope connects to an air manifold and HEPA-filtered air flows through its channels: at least 6 L/min per scope, at no more than 4 psi (27.6 kPa), on integrated pump models. The cabinet itself stays at positive pressure.
What are the standards for drying endoscopes in a drying cabinet?
Your facility chooses the guidelines it follows. Capsa states that the TruAir drying cabinet is designed to follow the ST91 guidelines and that it complies with The Joint Commission, AORN and SGNA standards and guidelines. LIOMAR does not certify compliance: your infection prevention team confirms what applies in your facility.
Does an endoscope drying cabinet need an air compressor?
Not the TruAir with an integrated pump. DRY models have their own air pump with a HEPA filter and plug into a 120 V wall outlet. HA models use your hospital air supply instead; the hospital air integration is sold separately.
How much does a TruAir drying cabinet cost?
The price depends on the size, the air supply (integrated pump or hospital air), the finish and the options. The scope connectors are sold separately. Request a quote and a representative replies within two business days.
Other TruAir endoscope products
TruAir Scope Tracker
Endoscope storage and drying · Capsa Healthcare

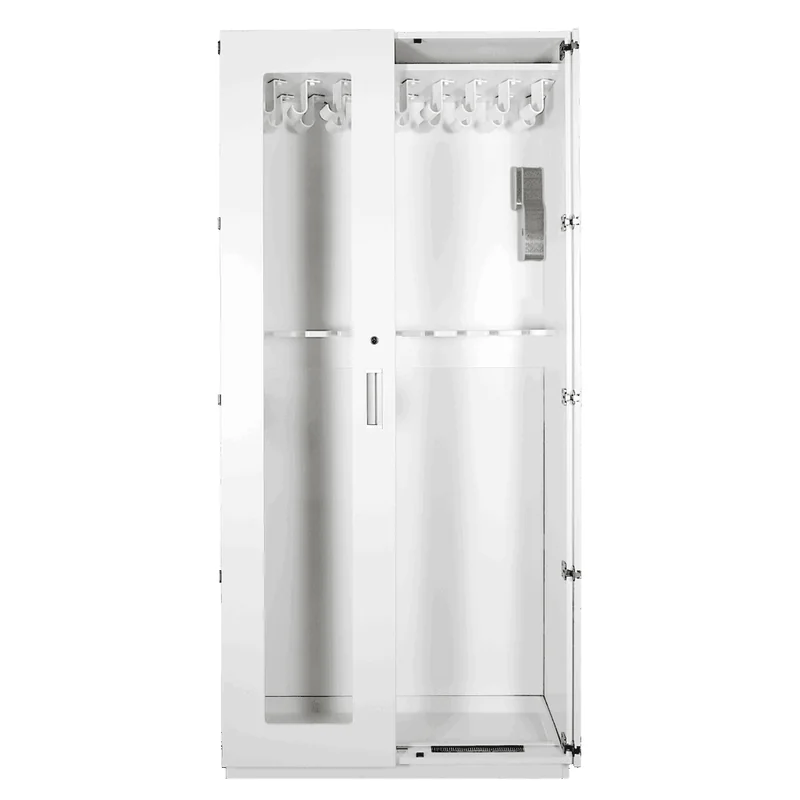

TruAir Endoscope Storage Cabinet
Endoscope storage and drying · Capsa Healthcare

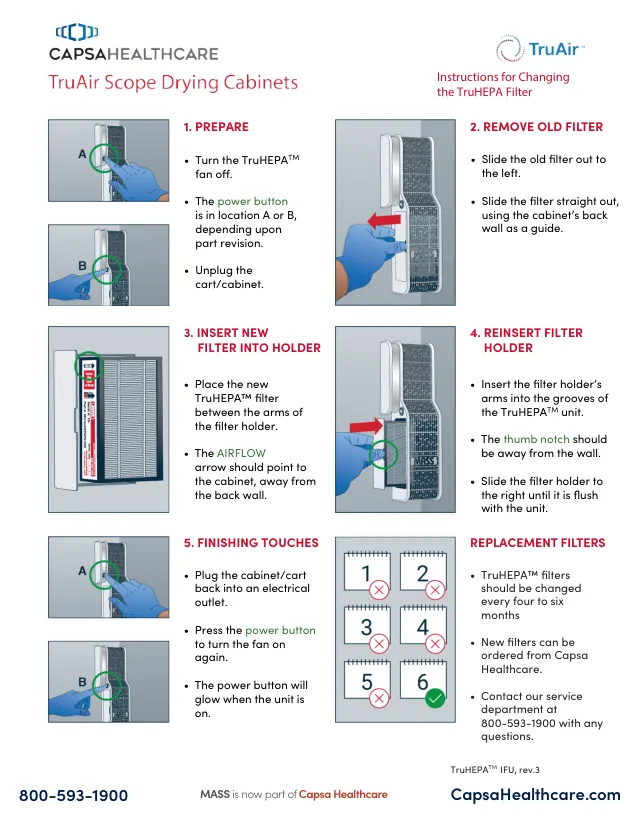

TruHEPA Filter Maintenance Package
Endoscope storage and drying · Capsa Healthcare

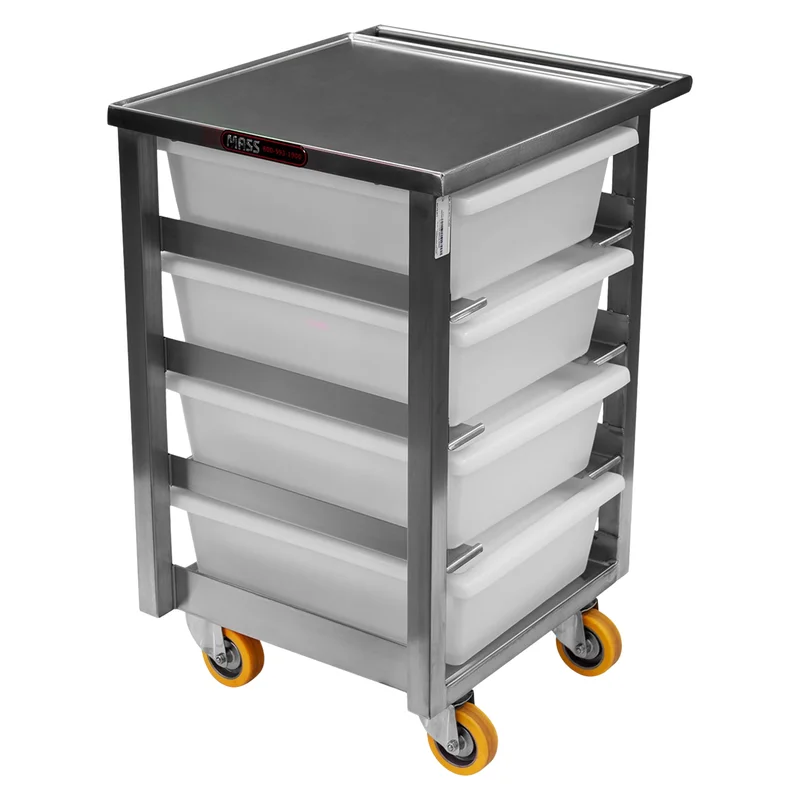

TruAir Scope Transport Cart
