By Capsa Healthcare
TruAir Endoscope Storage Cabinet
An endoscope storage cabinet for endoscopy suites, hospitals, ambulatory surgery centres and operating rooms. Flexible endoscopes hang behind a locking glass door, in a cabinet kept at positive pressure by a TruHEPA filter. LIOMAR helps you choose the size from the number of scopes your unit stores.
- Holds 4 to 18 flexible endoscopes, in a half-size or full-size cabinet
- Separate TruHEPA air system keeps positive pressure in the cabinet; filter rated at 99.97% of particles down to 0.3 µm
- Front rotating scope hooks and a padded lower back wall to protect the distal tips
- Locking hinged glass door, keyed as standard or keyless as an option

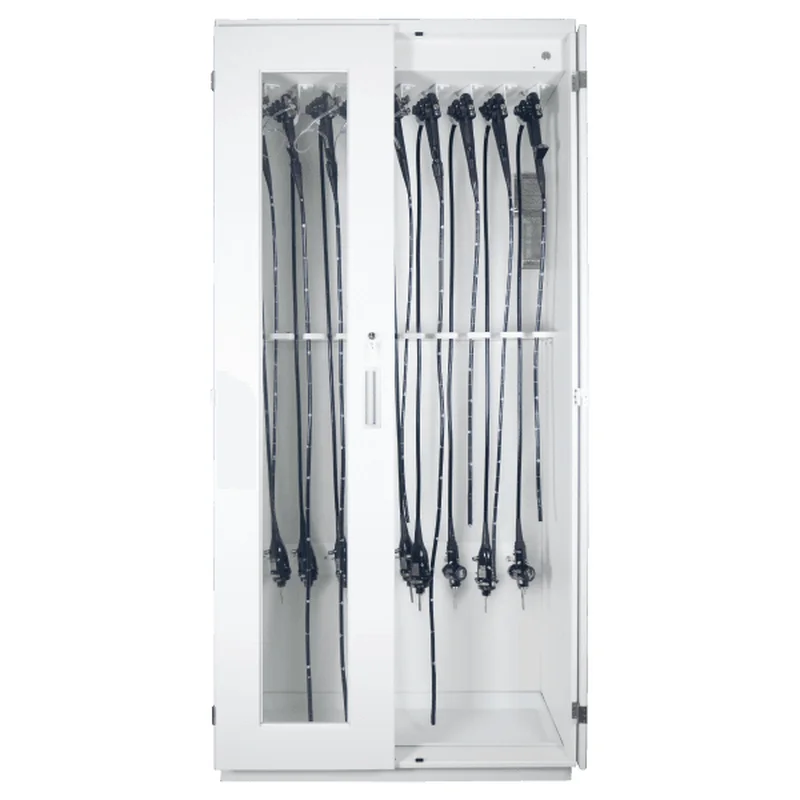

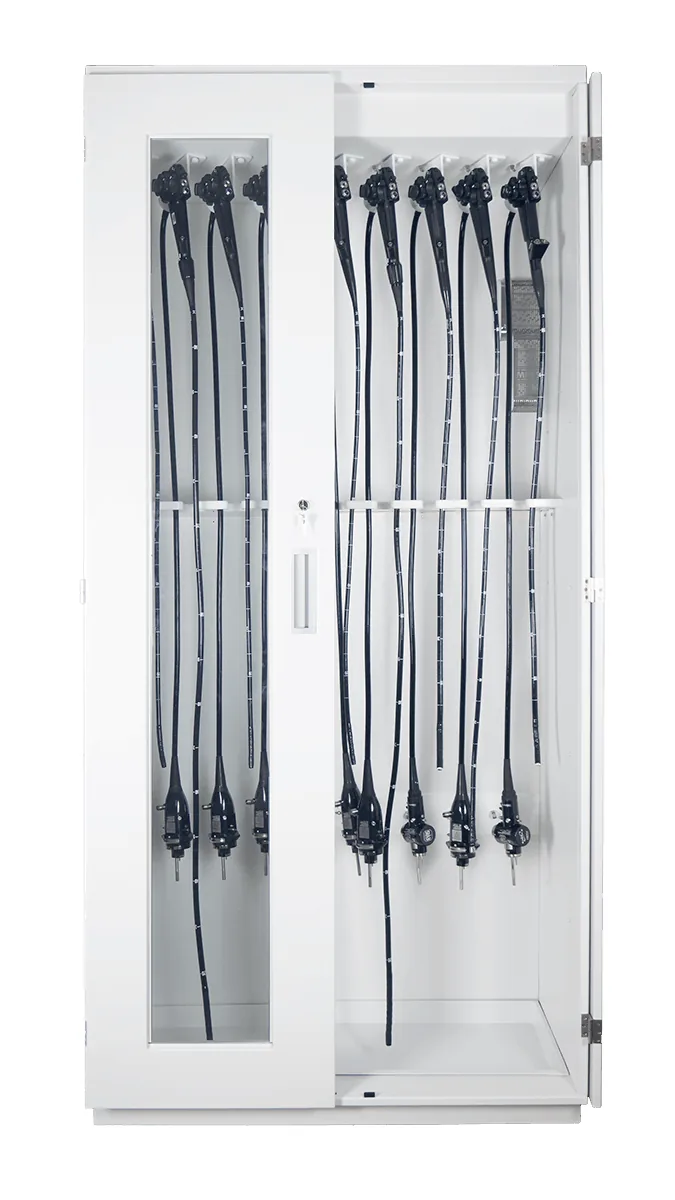

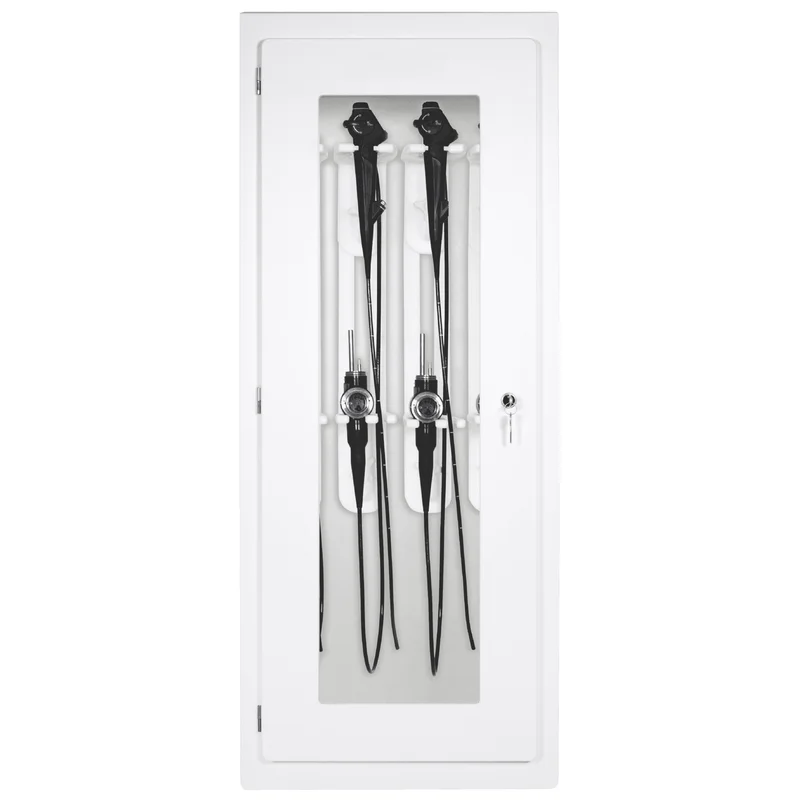

A closed cabinet for hanging scopes
Four models in a half-size or full-size cabinet, for 4 to 18 flexible endoscopes. Both widths stand 93.75 in (238.1 cm) high.

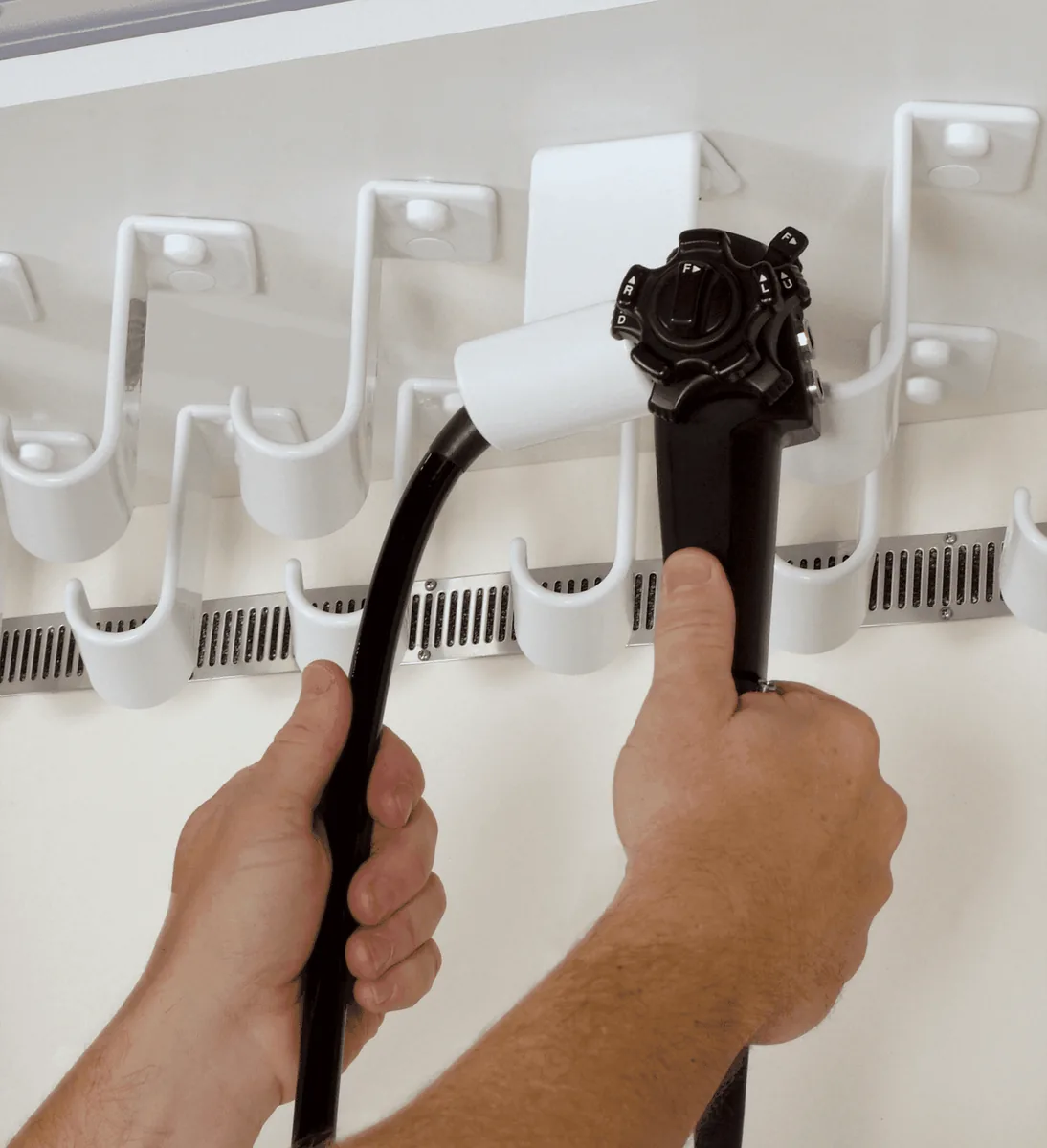

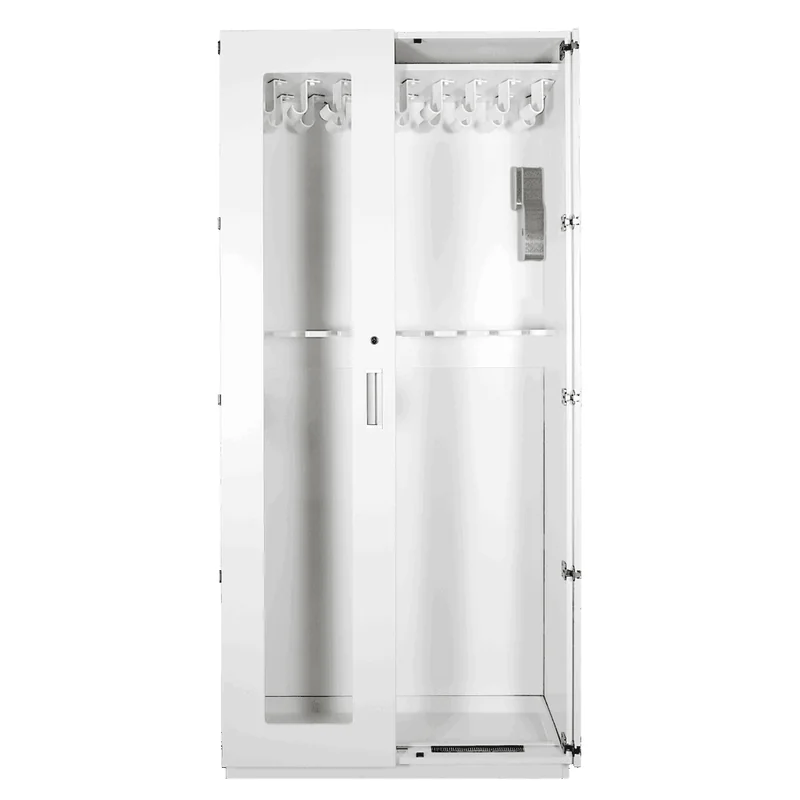

Scopes hang from rotating hooks at the front of the cabinet, with a centre separator scope rack below.

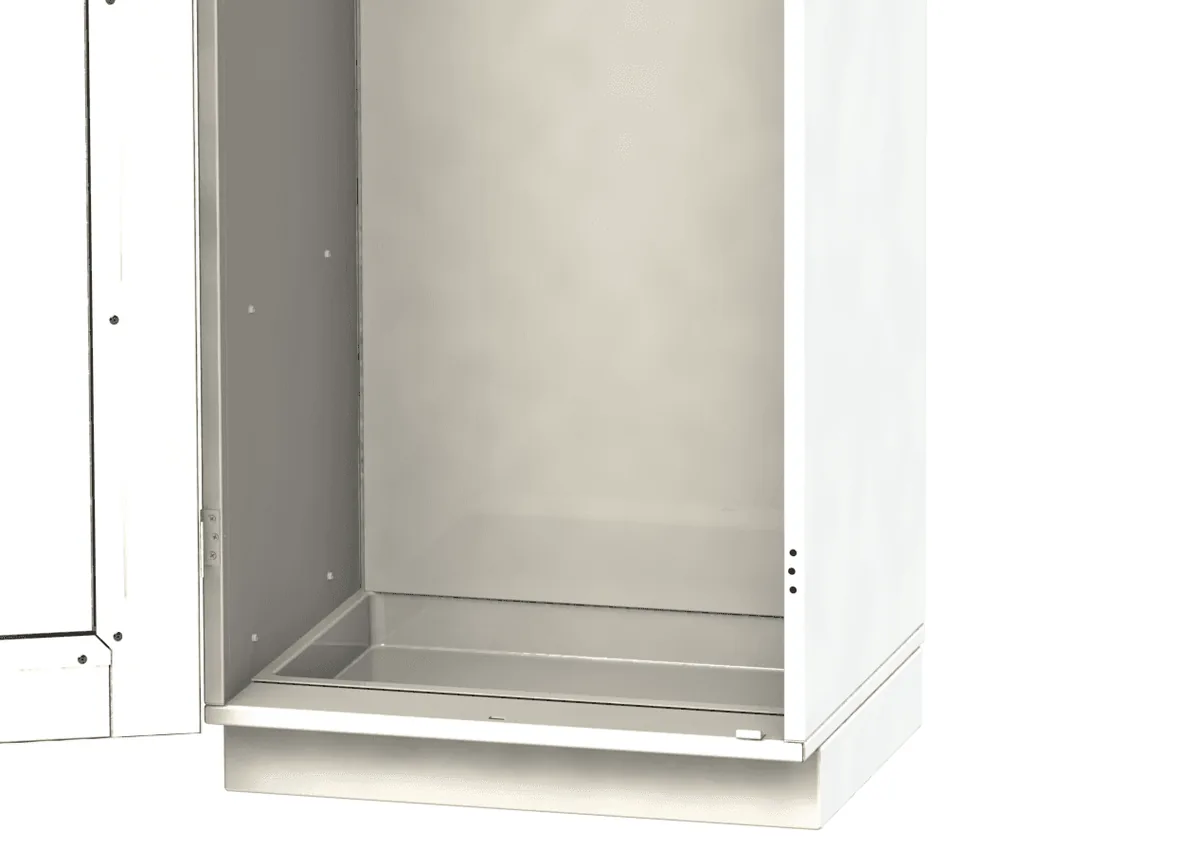

The lower back wall of the cabinet is padded to protect the distal tips of the scopes.

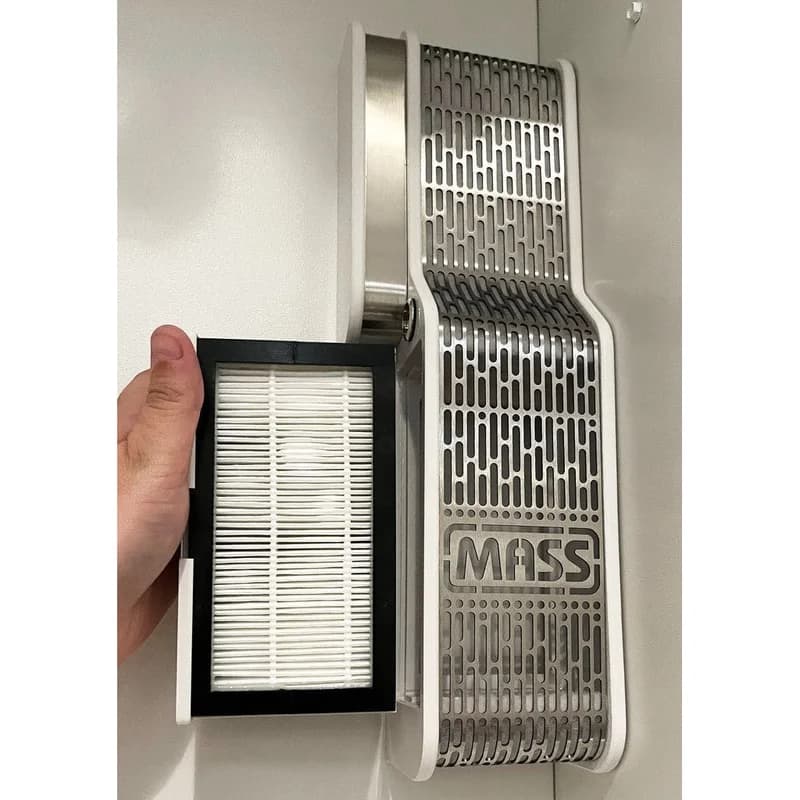

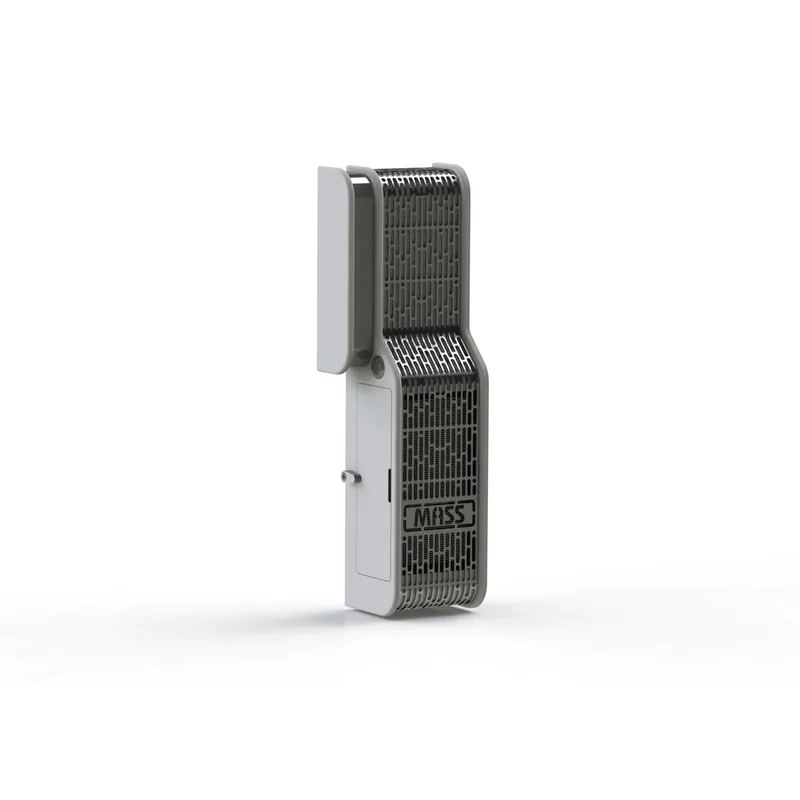

A separate TruHEPA air system keeps positive pressure inside the cabinet. Its filter is rated at 99.97% of particles down to 0.3 µm.
Features of this storage cabinet
Keyed or keyless locking
A keyed lock is standard on the hinged glass door. A keyless lock is available as an option.
Pass-through configuration (option)
Capsa offers the cabinet in a pass-through configuration. Tell us the layout of your rooms and we confirm it with your quote.
Lighting and readings (options)

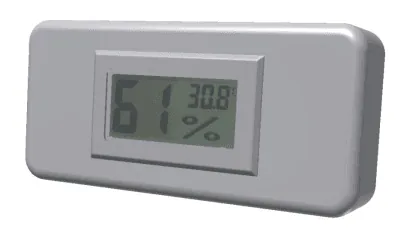

Door-activated LED lighting and a temperature and humidity gauge can be added to the cabinet.
White or stainless steel
Bright white powder-coated metal as standard, or a stainless steel finish. A roll-up door is also offered.
See the TruAir range
Capsa presents its TruAir scope system: cabinets and carts to store, transport and protect endoscopy equipment.
Specifications and configuration
Half size
21.625 in (54.9 cm)Width
- Models
- SAS-4004, SAS-4008
Full size
40.875 in (103.8 cm)Width
- Models
- SAS-4009, SAS-4018
Same on both widths
- Depth
- 18.75 in (47.6 cm)
- Height
- 93.75 in (238.1 cm)
- Capacity
- 4, 8, 9 or 18 flexible endoscopes, depending on the model
- Construction
- Powder-coated metal, locking hinged glass door, padded lower walls for distal tip protection
- Finishes
- Bright white powder coat or stainless steel
- Air supply
- TruHEPA filter fan in the cabinet, keeping positive pressure
- Filtration
- 99.97% of particles down to 0.3 µm
- Electrical
- 120 V wall plug, 3 A, 8 ft (2.4 m) cord leaving the top right of the cabinet
- Standard equipment
- Keyed lock, slope top, padded lower back wall, front rotating scope hooks, centre separator scope rack
- Options
- Door-activated LED lighting, keyless lock, temperature and humidity gauge, roll-up door, stainless steel finish, pass-through configuration
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
Accessories
Name the ones you need in your quote request.
- Door-activated LED lighting
- Keyless lock
- Temperature and humidity gauge
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the TruAir storage cabinet
What type of storage cabinet is preferred for endoscope storage?
Your infection prevention policy and each endoscope manufacturer’s instructions set the storage requirements. The TruAir storage cabinet hangs scopes behind a locking glass door, in a cabinet kept at positive pressure by a TruHEPA filter. If your scopes also need forced air through their channels, look at the TruAir drying cabinet.
How long can flexible endoscopes be stored?
Capsa does not set a storage time for this cabinet. The limit comes from the guidelines your facility follows and from the endoscope manufacturer’s instructions for use. To follow it scope by scope, the TruAir Scope Tracker, mounted on a TruAir drying cabinet, shows how long each scope has been stored and the time remaining under your guidelines.
Is the TruAir storage cabinet HEPA-filtered?
Yes. Capsa fits the cabinet with a separate TruHEPA air system, a filter fan that keeps positive pressure inside the cabinet. The filter is rated at 99.97% of particles down to 0.3 µm. Plan its replacement: the TruHEPA filter maintenance package delivers a new filter every six months.
How much does a TruAir endoscope storage cabinet cost?
The price depends on the size, the finish and the options, such as the keyless lock, LED lighting or a pass-through configuration. Request a quote and a representative replies within two business days.
