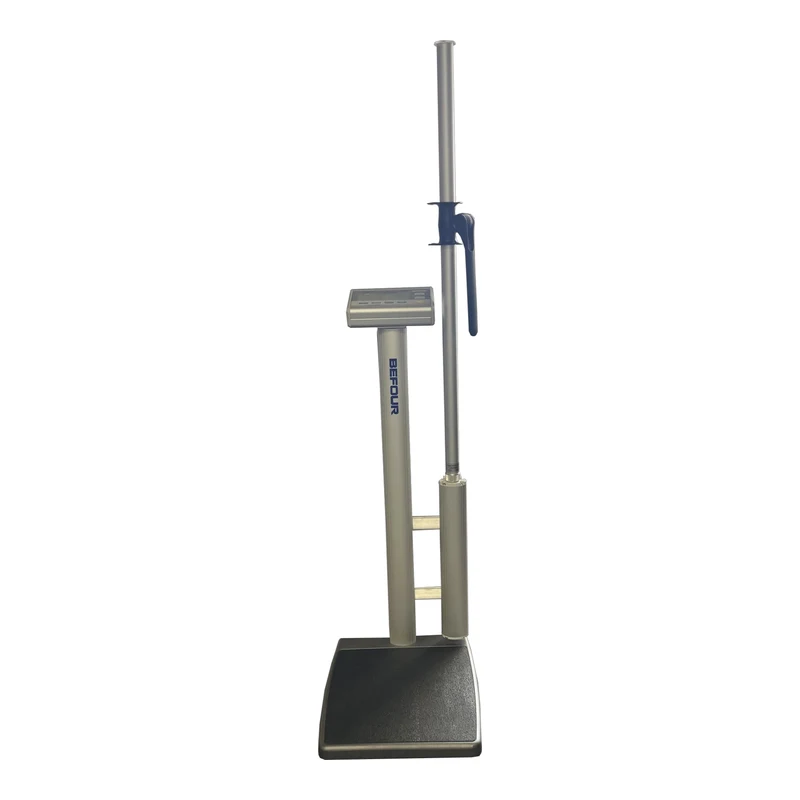

By Befour
MX805 Measurement Station with Height Rod
A column scale with an integrated digital height rod, for clinics and care units that record weight, height and BMI together. The console sits at 42 in for easy reading.
- Capacity of 750 lb (340 kg), read to 0.1 lb (0.05 kg)
- Digital height rod from 38 to 88 in (97 to 225 cm), BMI calculated automatically
- MotionLock gives a stable weight even when the person moves
- All-aluminum design of 17 lb, running on 4 D-cell batteries
Weight, height and BMI on one column
Press HEIGHT and raise the foldable headpiece. The height displays automatically, and the BMI is calculated from it.
The console sits at 42 in and shows weight, height and BMI on one screen, in large 1 in digits.
MotionLock settles the weight even when the person moves, without help from the caregiver or the patient.
Send the results through USB serial output or the optional wireless module. No outlet needed: about 100,000 weighings per set of batteries.
Built into this scale
MotionLock
The scale settles the reading by itself, so a patient who sways or shifts still gets a weight you can record.
ECO Weigh batteries
Standard D-cell batteries last a long time between changes, so there is no cord on the floor and no outlet to find.
Hands-free weighing
A console setting lets the scale weigh without anyone pressing a button, which keeps hands off shared surfaces.
Ready for the medical record
Weights can go to your electronic record through the serial output or the optional wireless module.
Aluminum build
An aluminum frame that does not rust and stays light enough for your team to move.
Specifications
MX805
750 lbWeight capacity
- Capacity in kilograms
- 340 kg
- Resolution
- 0.1 lb (0.05 kg)
- Accuracy
- ± 0.1 lb (0.05 kg)
- Scale height
- 42 in (106.7 cm)
- Platform
- 16 × 18 × 1¾ in (40.6 × 45.7 × 4.4 cm)
- Scale weight
- 17 lb (7.7 kg)
- Construction
- Cast aluminum platform, anodized column
- Measuring range
- 38 to 88 in (97 to 225 cm)
- Height accuracy
- ± 0.1 in (0.2 cm)
- Height display
- Inches, feet and inches, or centimetres
- Headpiece
- Foldable, rotates 360°
- Power
- 4 D-cell alkaline batteries, included
- Battery life
- About 100,000 weighings per set
- Connectivity
- USB serial, or optional wireless module
- Display
- 1 in LCD digits: weight, height and BMI
- Console functions
- LB/KG lockout, programmable settings, BMI output, auto zero, recall, reweigh
- Manufacturer warranty
- 3 years, from Befour
- Country of manufacture
- USA
Accessories
Name the ones you need in your quote request.
- Wired printer, mounted on the scale
- AC adapter for plug-in use (03049-06)
About the manufacturer
Befour designs and builds professional healthcare scales: portable, bariatric, neonatal, wheelchair and height-and-weight models. Its scales are built in anodized aluminum and share one display console, so your team learns it once.
LIOMAR distributes Befour scales in Canada. We prepare your quote, deliver your scales and remain your first point of contact, working with Befour for service.
Questions about the MX805
Does the MX805 calculate BMI?
Yes. The digital height rod is built into the scale, so the MX805 calculates BMI automatically from the weight and height it measures, and displays it right away. The scale weighs up to 750 lb (340 kg), read to 0.1 lb (0.05 kg), and the rod measures from 38 to 88 in (97 to 225 cm).

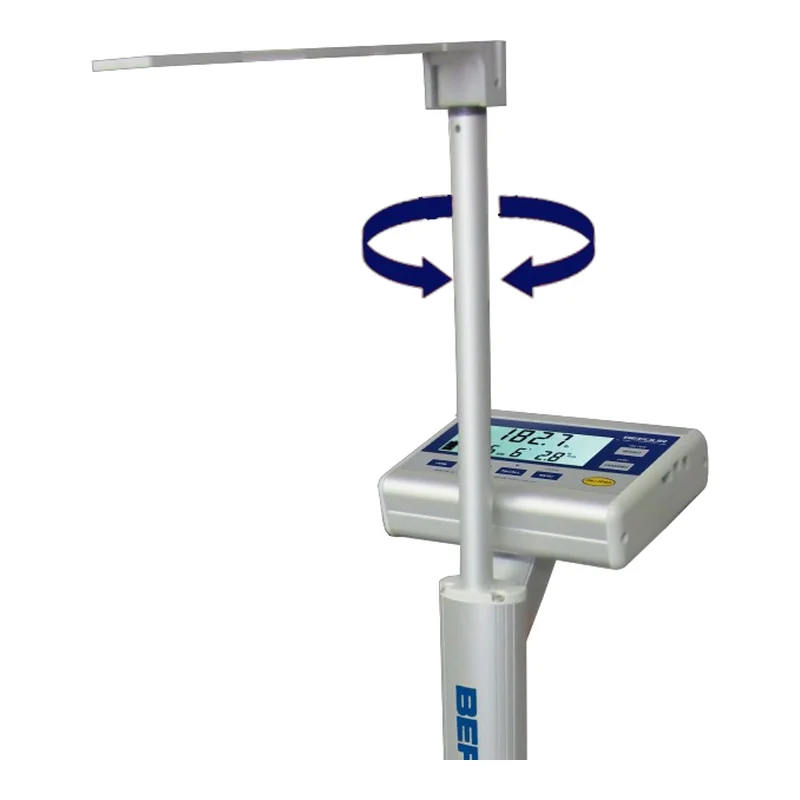

How is height measured on the MX805?
Press HEIGHT and raise the foldable headpiece. The height appears automatically, in inches, feet and inches, or centimetres. The rod rotates 360° so the headpiece is easier to position, and no cable is exposed. Befour lists an accuracy of ± 0.1 in (0.2 cm).
How much space does the MX805 take, and how high is the platform?
The cast platform measures 16 × 18 in (40.6 × 45.7 cm) and stands 1¾ in (4.4 cm) high. The scale is 42 in (106.7 cm) tall and weighs 17 lb (7.7 kg), in non-corroding aluminum. Allow 1 in (2.5 cm) of space around it, as it should not touch the wall. It runs on 4 D-cell batteries and needs no outlet.

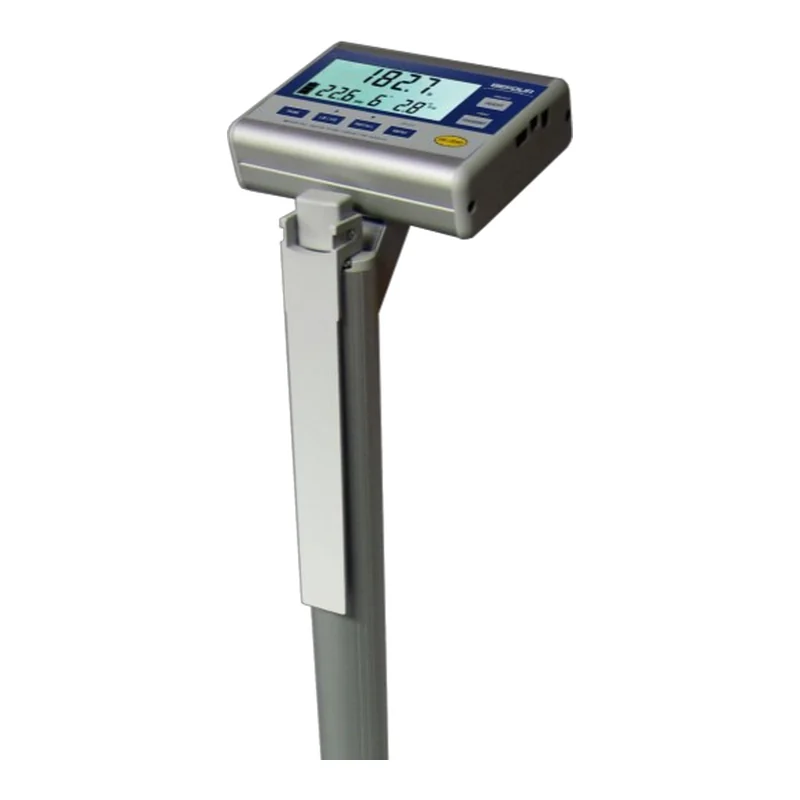

Where is the MX805 display, and what does it show?
The console sits 42 in (106.7 cm) high, at the top of the column. It shows weight, height and BMI on one screen, in 1 in (2.5 cm) LCD digits, with a 3-segment battery indicator. LB/KG lockout lets you display only the unit you use. The readings can go to your electronic record through the USB serial output or the optional wireless module.
How much does the MX805 scale cost?
The price depends on the quantity and the wireless module. Request a quote and a representative replies within two business days.
