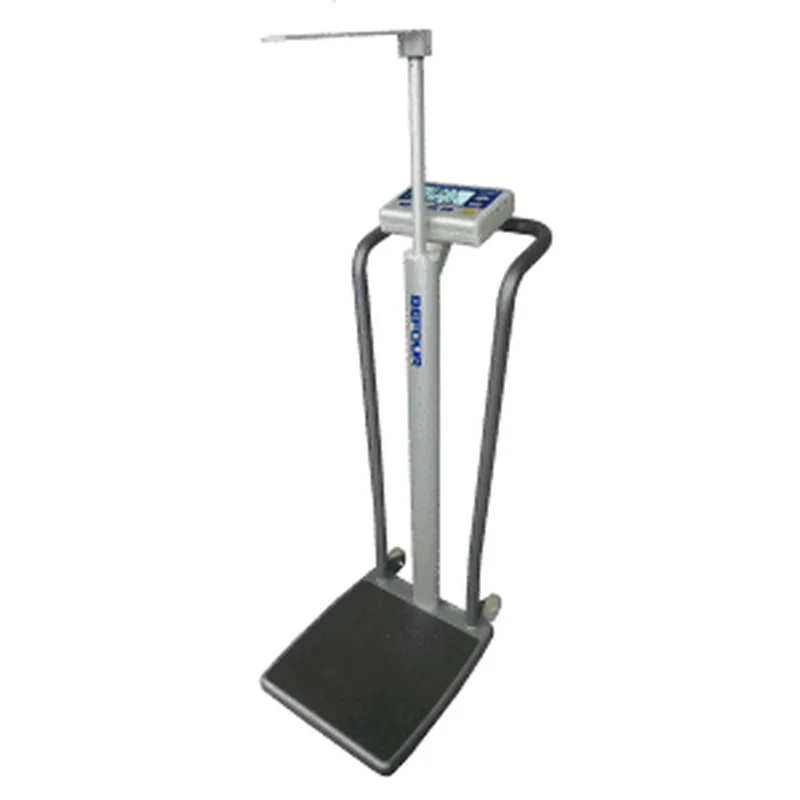

MX807 Tilt and Roll Scale with BMI and Height Rod
A measuring station on wheels for care units that record weight, height and BMI and move the scale between rooms. A compact handrail gives the patient something to hold while weighing.
- Capacity of 750 lb (340 kg), read to 0.1 lb (0.05 kg)
- Digital height rod from 38 to 88 in (97 to 225 cm), BMI calculated automatically
- MotionLock gives a stable weight even when the person moves
- Compact active handrail; tilts back on 3 in wheels to move
A measuring station that moves with you

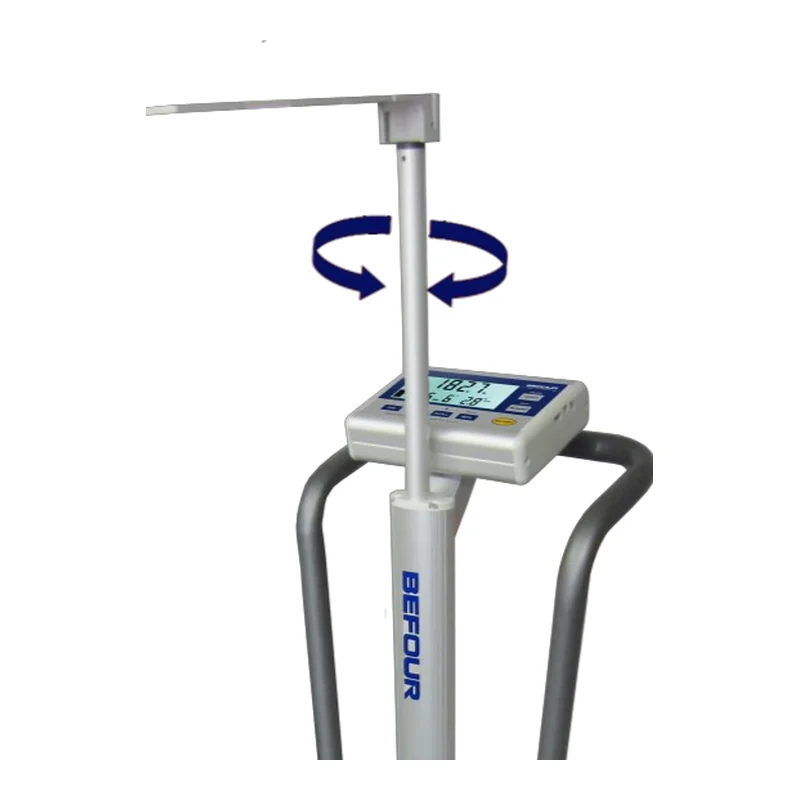

Press HEIGHT and raise the foldable headpiece. It rotates 360°, so it can be unfolded away from the patient’s face, then raised above the head.

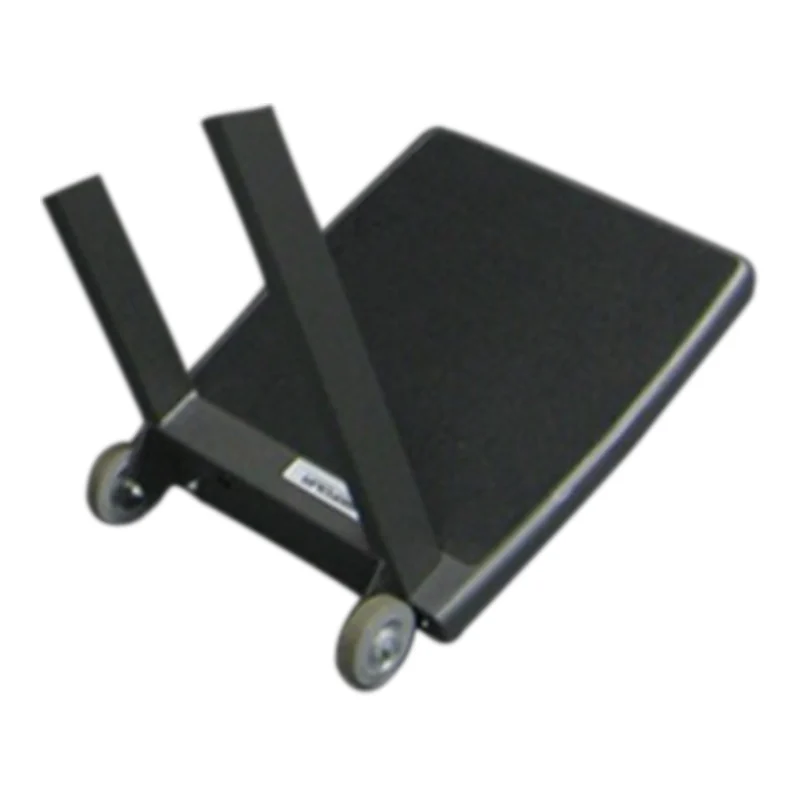

To change rooms, tilt the scale back on its 3 in wheels and roll it away. It fits through standard doorways.
The compact handrail does not get in the way of foot placement. MotionLock settles the weight even when the person moves.
Weight, height and BMI on one screen. Send them through USB serial output or the optional wireless module.
Built into this scale
MotionLock
The scale settles the reading by itself, so a patient who sways or shifts still gets a weight you can record.
ECO Weigh batteries
Standard D-cell batteries last a long time between changes, so there is no cord on the floor and no outlet to find.
Hands-free weighing
A console setting lets the scale weigh without anyone pressing a button, which keeps hands off shared surfaces.
Ready for the medical record
Weights can go to your electronic record through the serial output or the optional wireless module.
Aluminum build
An aluminum frame that does not rust and stays light enough for your team to move.
Specifications
MX807
750 lbWeight capacity
- Capacity in kilograms
- 340 kg
- Resolution
- 0.1 lb (0.05 kg)
- Accuracy
- ± 0.1 lb (0.05 kg)
- Scale height
- 42 in (106.7 cm)
- Platform
- 16 × 18 × 1¾ in (40.6 × 45.7 × 4.4 cm)
- Scale weight
- 25 lb (11.3 kg)
- Transport wheels
- 3 in (7.6 cm)
- Measuring range
- 38 to 88 in (97 to 225 cm)
- Height accuracy
- ± 0.1 in (0.2 cm)
- Height display
- Inches, feet and inches, or centimetres
- Headpiece
- Foldable, rotates 360°
- Power
- 4 D-cell alkaline batteries, included
- Battery life
- About 100,000 weighings per set
- Connectivity
- USB serial, or optional wireless module
- Display
- 1 in LCD digits: weight, height and BMI
- Console functions
- LB/KG lockout, programmable settings, BMI output, auto zero, recall, reweigh
- Manufacturer warranty
- 3 years, from Befour
- Country of manufacture
- USA
Accessories
Name the ones you need in your quote request.
- Wired printer, mounted on the scale

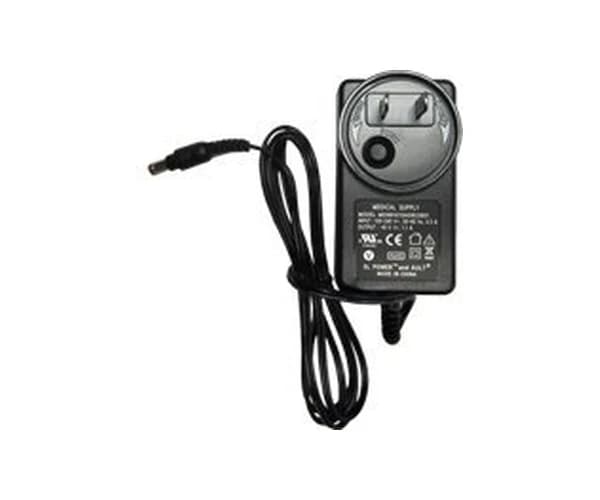

- AC adapter for plug-in use (03049-06)
About the manufacturer
Befour designs and builds professional healthcare scales: portable, bariatric, neonatal, wheelchair and height-and-weight models. Its scales are built in anodized aluminum and share one display console, so your team learns it once.
LIOMAR distributes Befour scales in Canada. We prepare your quote, deliver your scales and remain your first point of contact, working with Befour for service.
Questions about the MX807
What does the MX807 measure?
The MX807 measures weight up to 750 lb (340 kg), read to 0.1 lb (0.05 kg), and height from 38 to 88 in (97 to 225 cm) with its integrated digital height rod. It calculates BMI and shows weight, height and BMI right away on one screen. The readings can go to your electronic record through the USB serial output or the optional wireless module.
How does the MX807 height rod work?
Press HEIGHT and raise the foldable headpiece. The height appears automatically, in inches, feet and inches, or centimetres. The headpiece rotates 360°, so it can be kept away from the face of the patient while it is unfolded, then raised above the head. Befour lists an accuracy of ± 0.1 in (0.2 cm).
How do you move the MX807 to another room?
Tilt the scale back on its large 3 in (7.6 cm) wheels and roll it away. It fits through standard doorways and weighs 25 lb (11.3 kg). The Tilt & Roll design keeps the scale stationary during weighing. It runs on 4 D-cell batteries, about 100,000 weighings per set according to Befour, so it needs no outlet in the next room.
How does the MX807 differ from the MX808?
Both have a capacity of 750 lb (340 kg), a 16 × 18 in (40.6 × 45.7 cm) platform, a digital height rod from 38 to 88 in (97 to 225 cm) and Tilt & Roll transport. The difference is the handrail. The MX807 has a compact handrail and weighs 25 lb (11.3 kg). The MX808 has a wrap-around handrail with 25 in (63.5 cm) between the handgrips and weighs 33 lb (15 kg).
How much does the MX807 scale cost?
The price depends on the quantity and the wireless module. Request a quote and a representative replies within two business days.
