By Capsa Healthcare

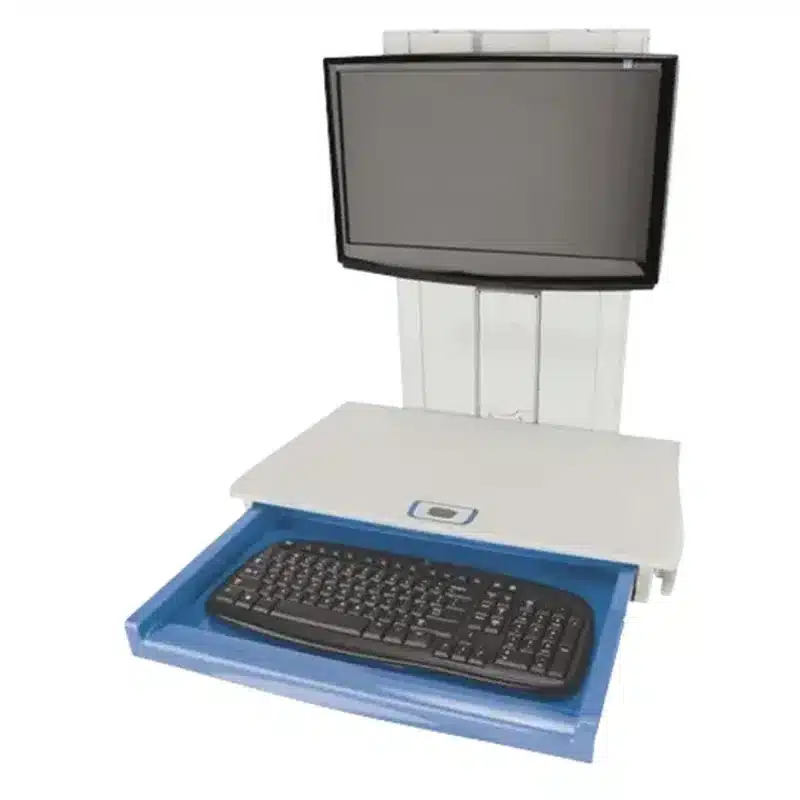

Slim Line Wall Arm
A compact wall-mounted workstation for rooms and corridors where a mobile cart does not fit. It carries a monitor, a keyboard drawer and a work surface, and folds flat against the wall. The computer and monitor are not included.
- Folds to 4.125 in (10.5 cm) from the wall
- 15 in (38.1 cm) of height adjustment with a locked position, for sitting or standing
- Holds a monitor up to 25 lb (11.3 kg) that adjusts for viewing from several directions
- Keyboard drawer with wrist rest, under a 21.5 × 11 in (54.6 × 27.9 cm) work surface

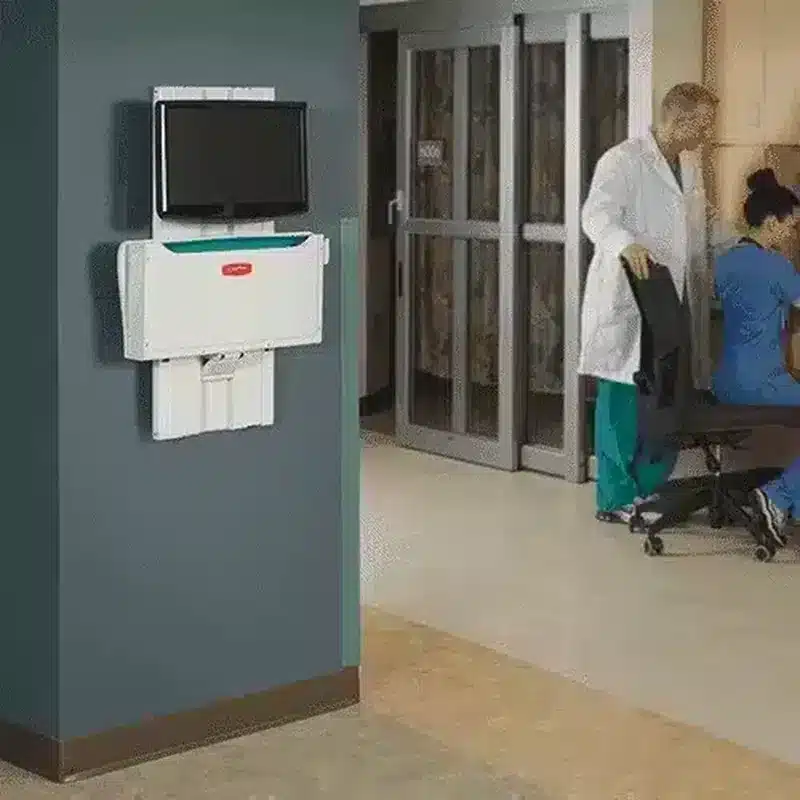

A workstation that folds against the wall
Folded, the Slim Line sits 4.125 in (10.5 cm) from the wall. Capsa lists medical and surgical units, intensive care, isolation rooms, emergency, ambulatory care and operating rooms.
The workstation moves through 15 in (38.1 cm) of height and locks in position. The keyboard drawer has an integrated wrist rest.
The monitor turns toward the user from several directions, and dedicated channels hide the cables during installation.
Features of this wall arm
A slim profile
Folded, the workstation sits 4.125 in (10.5 cm) from the wall, within a maximum footprint of 34 × 25.16 in (86.4 × 63.9 cm).
Height that locks
15 in (38.1 cm) of height adjustment. A brake locks the height; on the Premium, a Comfort Grip Actuator locks it automatically.
Work surface and keyboard drawer
A 21.5 × 11 in (54.6 × 27.9 cm) surface with a spill-retaining lip, over a keyboard drawer with a wrist rest.
A monitor that turns to you
The monitor adjusts for viewing from several directions. On the Premium, the bracket rotates 180° and tilts 20° up or down.
Room for the computer (Premium)
The Premium Slim Line is ordered with an integrated technology box or an external CPU holder, and a pre-wired USB connection to the keyboard drawer.
Specifications and configuration
Slim Line
15 in (38.1 cm), locked positionHeight adjustment
- Monitor weight capacity
- 25 lb (11.3 kg)
- Depth when stowed
- 4.125 in (10.5 cm)
- Maximum footprint (H × W × D)
- 34 × 25.16 × 4.125 in (86.4 × 63.9 × 10.5 cm)
- Work surface
- 21.5 × 11 in (54.6 × 27.9 cm), with a spill-retaining lip
- Height lock
- Height adjustment brake; on the Premium, a Comfort Grip Actuator locks the height automatically
- Premium only
- Pre-wired USB to the keyboard drawer; integrated technology box or external CPU holder (one or the other)
- Premium monitor bracket
- VESA 75 and 100 mm, 180° rotation, tilts 20° up or down
- Optional accessories
- Access Pack for medication cups, medical tape and alcohol wipes; height-adjustable monitor bracket, 5 in (12.7 cm) of travel, for monitors of 8 to 12 lb (3.6 to 5.4 kg) (4172200) or 13 to 18 lb (5.9 to 8.2 kg) (4172201); keyboard tilt, up to 20° down (4170931)
- Cable management
- Dedicated cable channels
- Computer and monitor
- Not included
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
- Service
- LIOMAR is your first point of contact and works with Capsa Healthcare on repairs.
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the Slim Line Wall Arm
Can the Slim Line wall mount include a keyboard tray?

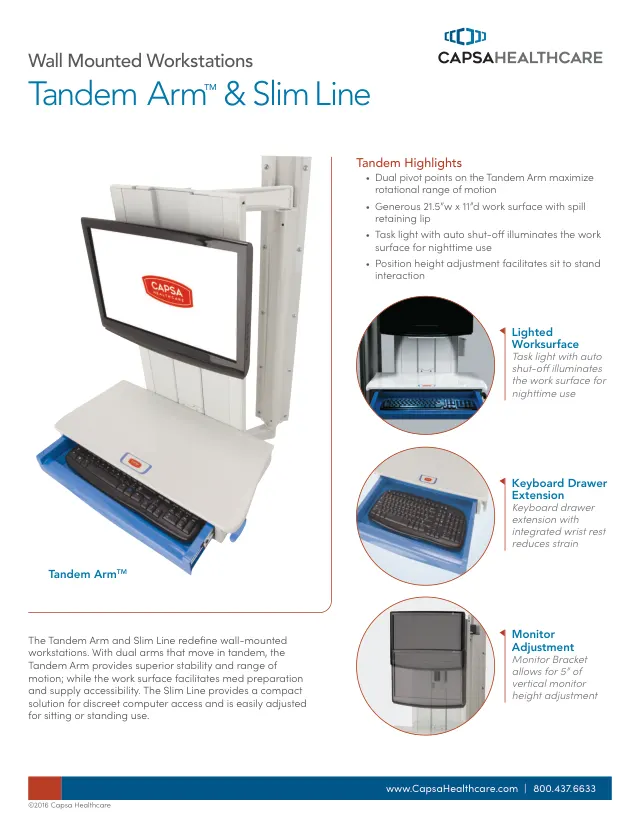

Yes. The Slim Line has a keyboard drawer with an integrated wrist rest, under a 21.5 × 11 in (54.6 × 27.9 cm) work surface with a spill-retaining lip (Capsa brochure C-393). On the Premium version, the USB connection to the keyboard drawer is pre-wired, and Capsa offers a keyboard tilt accessory (4170931) for a tilt of up to 20° down.
How is the Slim Line height adjusted?

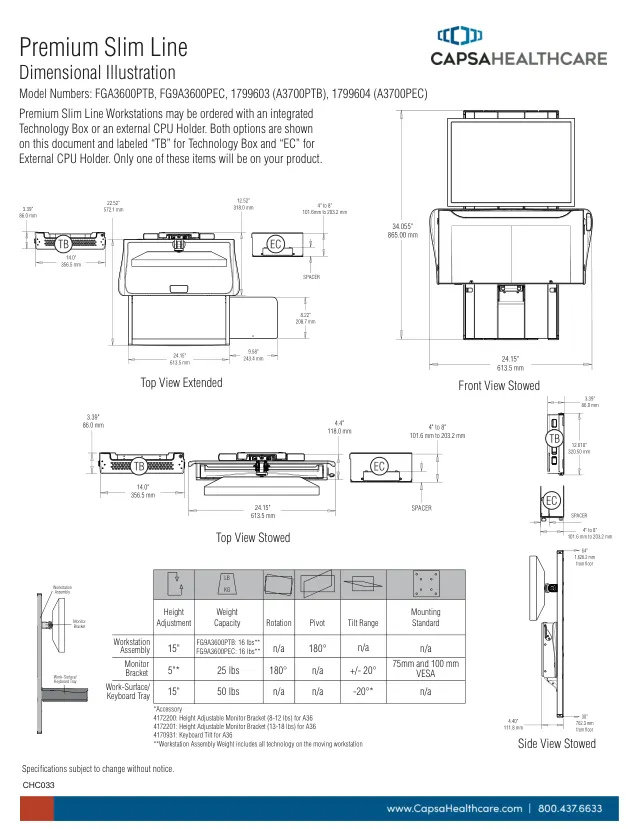

The workstation moves through 15 in (38.1 cm) of height, for sitting or standing use, and locks in position. Capsa lists a height adjustment brake on the Slim Line; the Premium version has a Comfort Grip Actuator that locks the height automatically. An optional height-adjustable monitor bracket adds 5 in (12.7 cm) of monitor height (Premium sheet CHC033).
Is the Slim Line compatible with standard monitors?
The Slim Line holds a monitor up to 25 lb (11.3 kg). On the Premium Slim Line, the monitor bracket takes VESA 75 and 100 mm mounts, rotates 180° and tilts 20° up or down (Capsa sheet CHC033). The height-adjustable bracket comes in two versions by monitor weight: 8 to 12 lb (3.6 to 5.4 kg) or 13 to 18 lb (5.9 to 8.2 kg).
What equipment does the Slim Line support?
A monitor, and a keyboard in the keyboard drawer. The Premium Slim Line is ordered with either an integrated technology box or an external CPU holder for the computer, one or the other (Capsa sheet CHC033). An optional Access Pack holds medication cups, medical tape and alcohol wipes. The computer and monitor are not included: send us their models and we confirm the fit with Capsa.
How much does the Slim Line Wall Arm cost?
The price depends on the version (standard or Premium), the accessories and the number of workstations. Request a quote and a representative replies within two business days. The computer and monitor are not included, and the lead time is confirmed with your quote.
