AX Series Wall Arm
A wall-mounted monitor arm for patient rooms and care areas where the computer needs to be at the bedside without taking floor space. LIOMAR helps you choose the arm components, the wall track and the accessories for your equipment. The computer and monitor are not included.

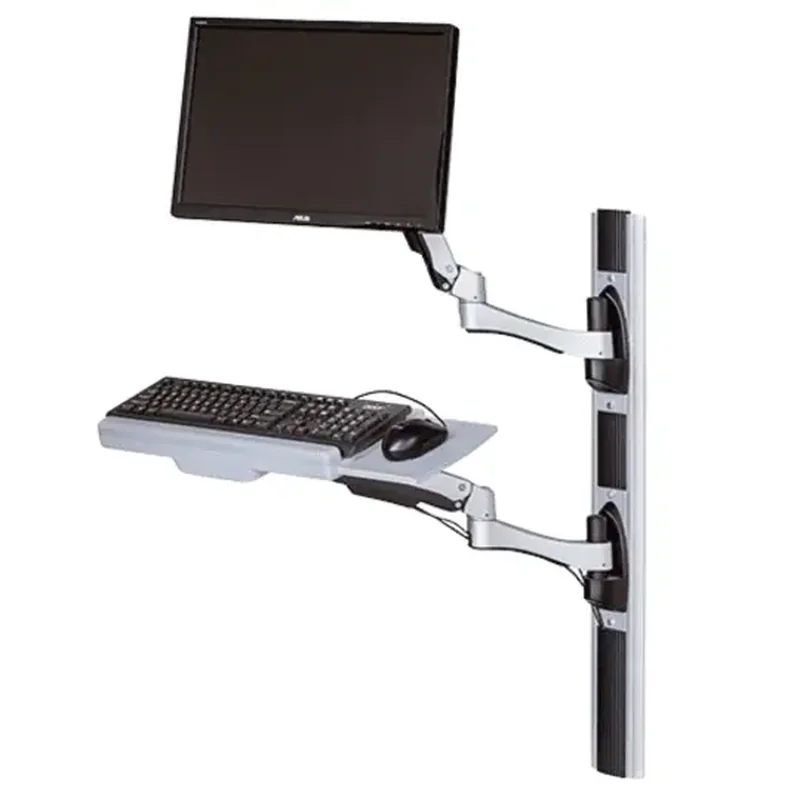

- 12 in (30.5 cm) of vertical monitor travel through 90° of articulating arm motion
- 180° of lateral motion; the monitor or keyboard tray tilts 90° up and 20° down
- VESA 75 and 100 mm monitor mount; under 8 in (20.3 cm) from the wall when stowed
- Laptop tray, tablet mount and CPU holder as options; also mounts on Capsa carts
The computer at the bedside, off the floor
Mounted on a wall track, the arm brings the screen and keyboard to the bed and folds back after use. Capsa lists clinical documentation, eMAR and barcode scanning, registration, medication and supply preparation, and order entry.
The keyboard adjusts vertically, independently of the monitor, so each user sets the distance between the hands and the screen.

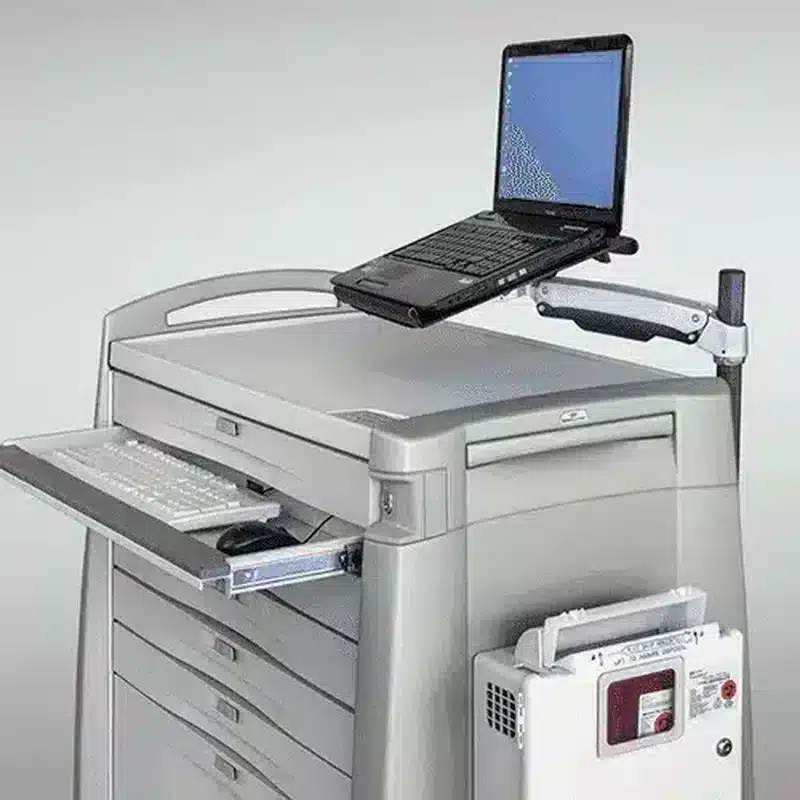

The AX arm also comes with a rear mount for Capsa Avalo, M-Series and Vintage Encore carts, with the same laptop tray.
Build the arm around your equipment: a standard laptop tray, a tablet mount, a CPU holder or a mouse holder.
Features of this wall arm
A wide range of motion
The articulating arm moves through 90° for 12 in (30.5 cm) of vertical monitor travel, and swings 180° from side to side.
Keyboard set apart from the screen
The keyboard tray adjusts on its own height, and the monitor or tray tilts 90° up and 20° down.
Built from the parts you need
Articulating and optional fixed arm components, an 18 in (45.7 cm) extender arm, a work surface or a rotation limiter.
Aluminum with a hardened finish
A lightweight aluminum arm with a hardened finish, made for daily use in care areas.
Close to the wall when stowed
Under 8 in (20.3 cm) from the wall when folded, with the cables routed inside the arm.
See the AX Series arms
Capsa presents its AX Series monitor arms.
Specifications and configuration
AX Series
12 in (30.5 cm)Vertical monitor adjustment
- Articulating arm motion
- 90°
- Lateral motion
- 180°
- Monitor or keyboard tray tilt
- 90° up, 20° down
- Monitor mount
- VESA 75 and 100 mm
- Profile when stowed
- Under 8 in (20.3 cm)
- Wall track
- 32 in (81.3 cm)
- Configuration
- Articulating arm, with optional fixed arm components; keyboard adjusts vertically, independently of the monitor
- Tension adjustment
- Lift spring, tilt balance and rotation, set with the two Allen wrenches provided
- Construction
- Lightweight aluminum with a hardened finish; internal cable management
- Optional accessories
- 18 in (45.7 cm) extender arm (not available with the 16 in (40.6 cm) wall track), 20 × 11.5 in (50.8 × 29.2 cm) work surface, rotation limiter, CPU holder (600508), mouse holder (600509), standard laptop tray for laptops up to 15 in (600502), tablet mount, desk mount
- Cart mounting
- AX arm and rear mount for Avalo carts (202000), or for Vintage Encore and M-Series carts (202012 in White Ash, 202013 in the other finishes); fixed link extension (600503)
- Computer and monitor
- Not included
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
- Service
- LIOMAR is your first point of contact and works with Capsa Healthcare on repairs.
Accessories
Name the ones you need in your quote request.

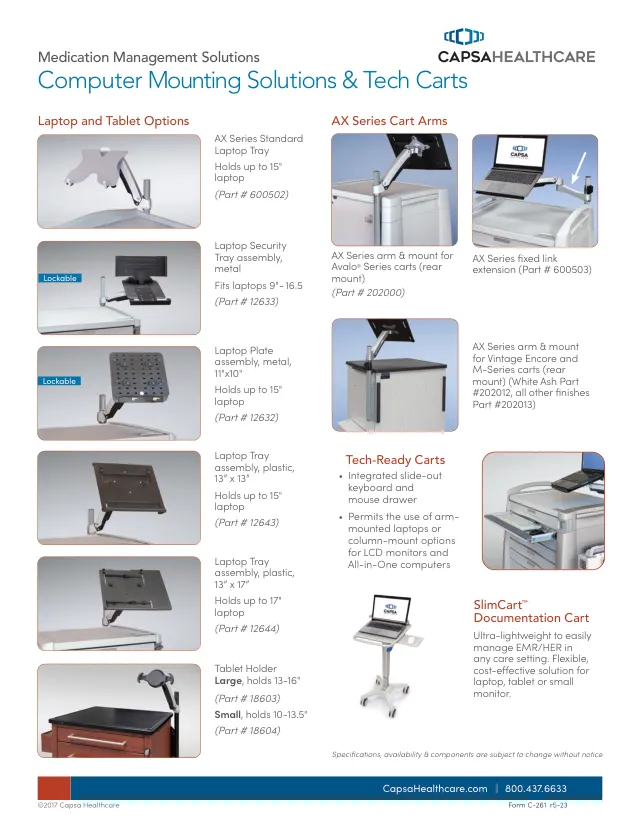

- Standard laptop tray, up to 15 in (600502)
- CPU holder (600508)

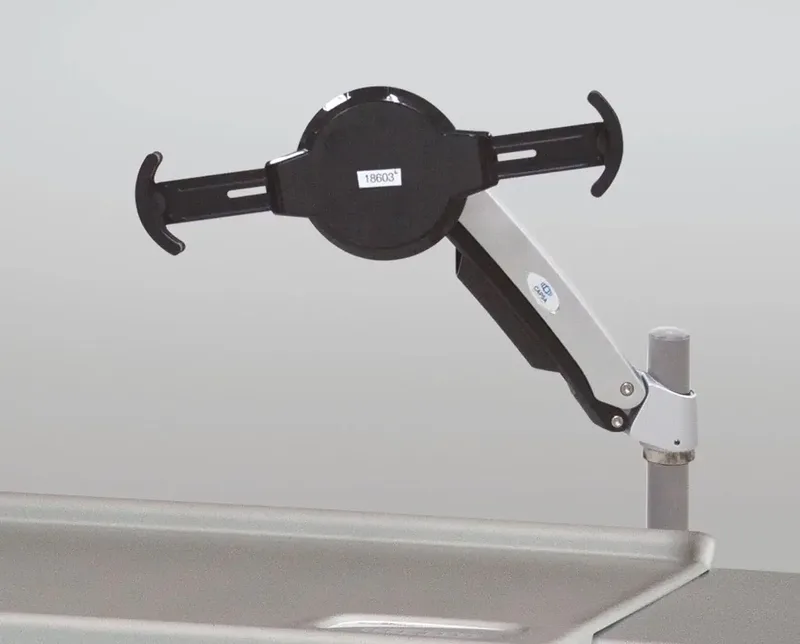

- Tablet mount
- AX arm and rear mount for Avalo carts (202000)

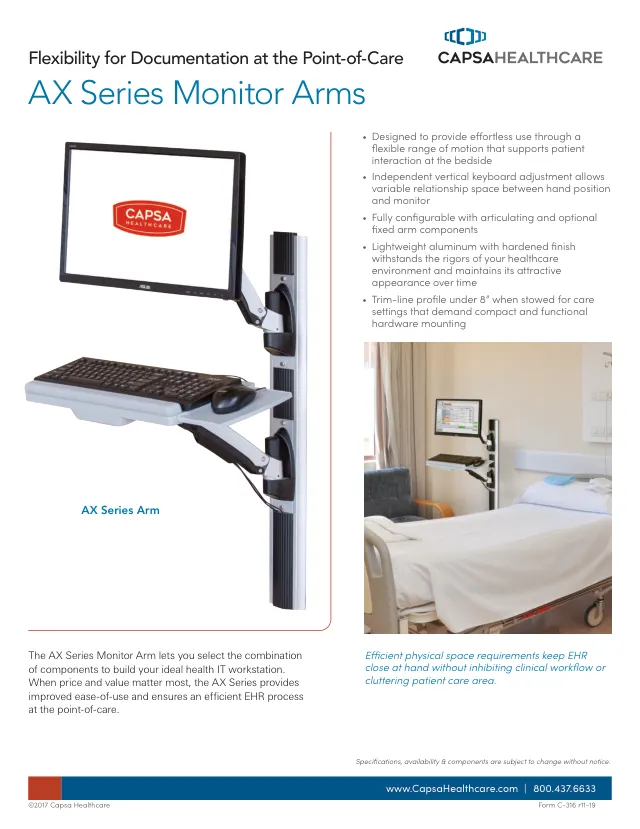

Documents
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the AX Series Wall Arm
Can the AX Series Wall Arm hold a laptop?
Yes, with the AX Series standard laptop tray (part 600502), which holds a laptop up to 15 in (Capsa form C-261). Capsa also lists a tablet mount and a CPU holder (600508) for the AX arm. The laptop is not included: tell us its model and we confirm the tray with your quote.
What equipment does the AX Series Wall Arm support?
The arm carries a monitor on a VESA 75 or 100 mm mount and a keyboard tray that adjusts on its own. Capsa lists a CPU holder (600508), a mouse holder (600509), a 20 × 11.5 in (50.8 × 29.2 cm) work surface and an 18 in (45.7 cm) extender arm as options. The extender is not available with the 16 in (40.6 cm) wall track.
How is the AX Series arm repositioned and adjusted?

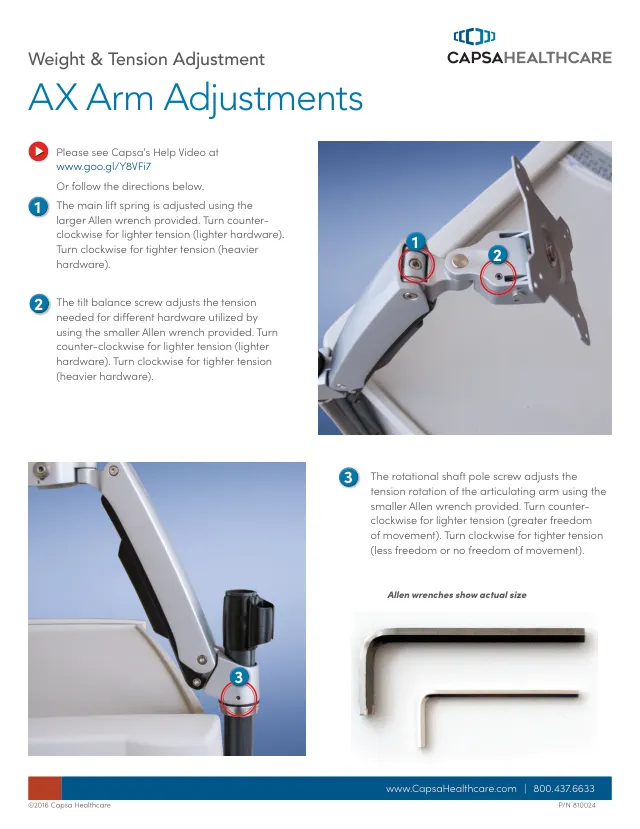

The arm moves by hand through its articulating and lateral range. To match the weight of your equipment, Capsa sets three tensions with the two Allen wrenches provided: the main lift spring, the tilt balance and the rotation of the arm. Turn clockwise for heavier equipment or less freedom of movement, counterclockwise for lighter equipment (Capsa sheet 810024).
Is the AX Series Wall Arm compatible with standard monitors?
It takes monitors with a VESA 75 or 100 mm mounting pattern, and the monitor tilts 90° up and 20° down. Capsa’s AX sheet does not state a maximum monitor weight. Send us the model of your monitor and we confirm the fit with Capsa before your quote.
How much does the AX Series Wall Arm cost?
The price depends on the arm components, the wall track, the accessories and the number of workstations. Request a quote and a representative replies within two business days. The computer and monitor are not included, and the lead time is confirmed with your quote.
Request a quote for the AX Series Wall Arm
Tell us how many workstations you need, the equipment the arm will carry and the accessories you want.
- A reply within two business daysA representative contacts you to understand your unit, your equipment needs and your timeline.
- Equipment that fits your unitWe suggest models for your space, your care team and your purchasing process.
- Documents for your purchasing teamSpecifications and the documentation your purchasing committee or tender requires.
- Your first contact after deliveryFor service and questions, you reach the same team.
