By Capsa Healthcare
Fluid Wall Arm
A wall-mounted workstation arm for documenting while staying with the patient, seated or standing. Capsa lists it for clinical documentation, eMAR and barcode scanning, registration, medication and supply preparation, order entry and sharing between two patient beds. Two versions: the Fluid ULT, up to 20 lb (9.1 kg), and the Fluid UHD, up to 35 lb (15.9 kg). The computer and monitor are not included.
- 22 in (55.9 cm) of vertical arm adjustment, with a lower range for seated work
- Monitor and keyboard each rotate 180°, independently
- Up to 62 in (157.5 cm) of reach with the optional extension arm; under 9.5 in (24.1 cm) from the wall when stored
- Fluid ULT up to 20 lb (9.1 kg), Fluid UHD up to 35 lb (15.9 kg) for two monitors; VESA 75 and 100 mm
Documentation that stays facing the patient

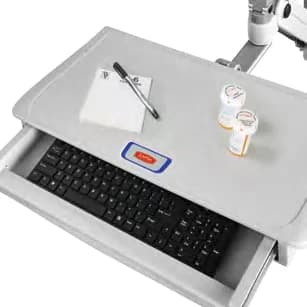

An 11.25 × 22 in (28.6 × 55.9 cm) work surface with a mouse surface on the left or right, and an enclosed keyboard tray that tilts down.

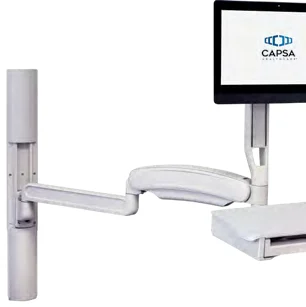

With the optional extension arm, the Fluid reaches up to 62 in (157.5 cm) into the care area, for example between two beds.

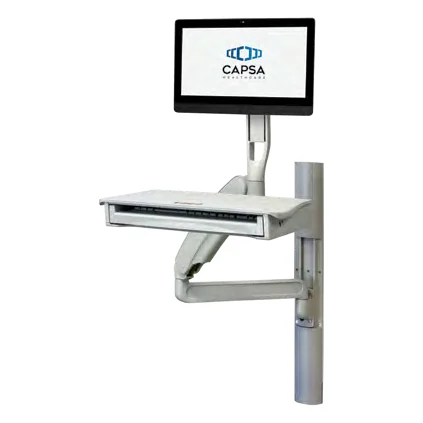

The arm travels 22 in (55.9 cm) vertically, and the monitor and keyboard each rotate 180° to share the screen or keep it private.

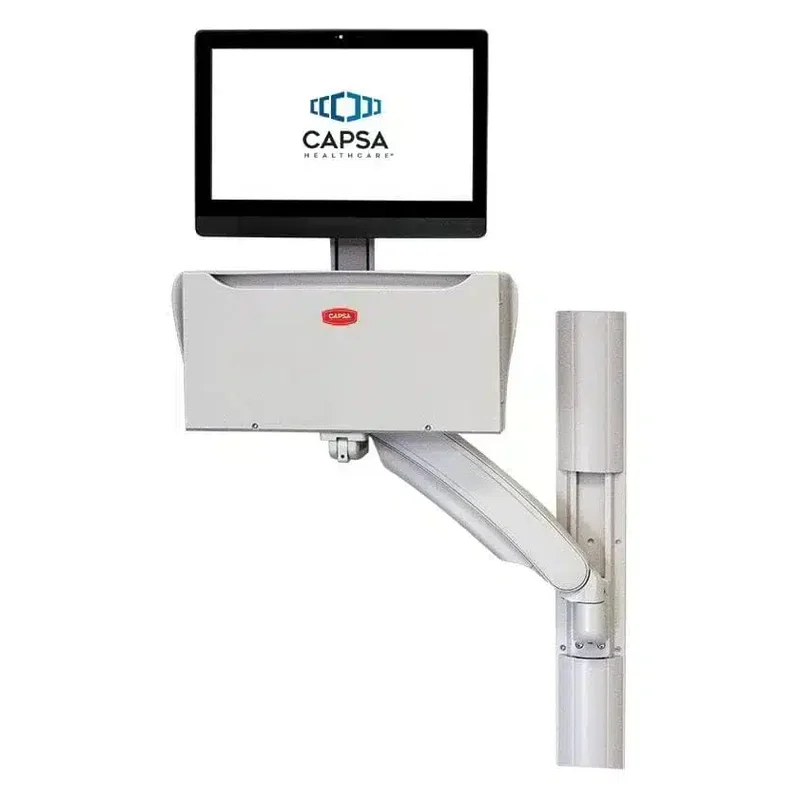

Folded, the arm stays under 9.5 in (24.1 cm) from the wall, with its cables concealed inside.
Features of this wall arm
One-hand positioning
A free-float counterbalance system lets the arm move with one hand.
Screen shared or private
The monitor and keyboard rotate 180° independently, and the monitor tilts more than 40°.
Extension arm (option)
Up to 62 in (157.5 cm) of reach into the care area with the optional extension arm.

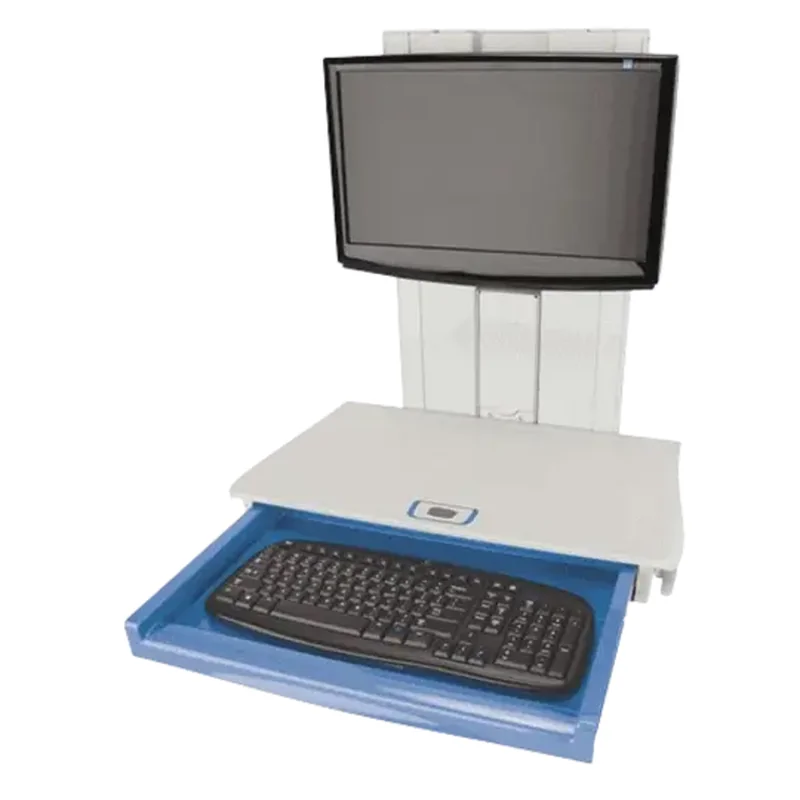

Enclosed keyboard storage
A keyboard tray with negative tilt, under a work surface with left or right mouse surfaces.
Pivot limits by pin
A simple pin sets where the arm stops pivoting, and the cables run concealed inside the arm.

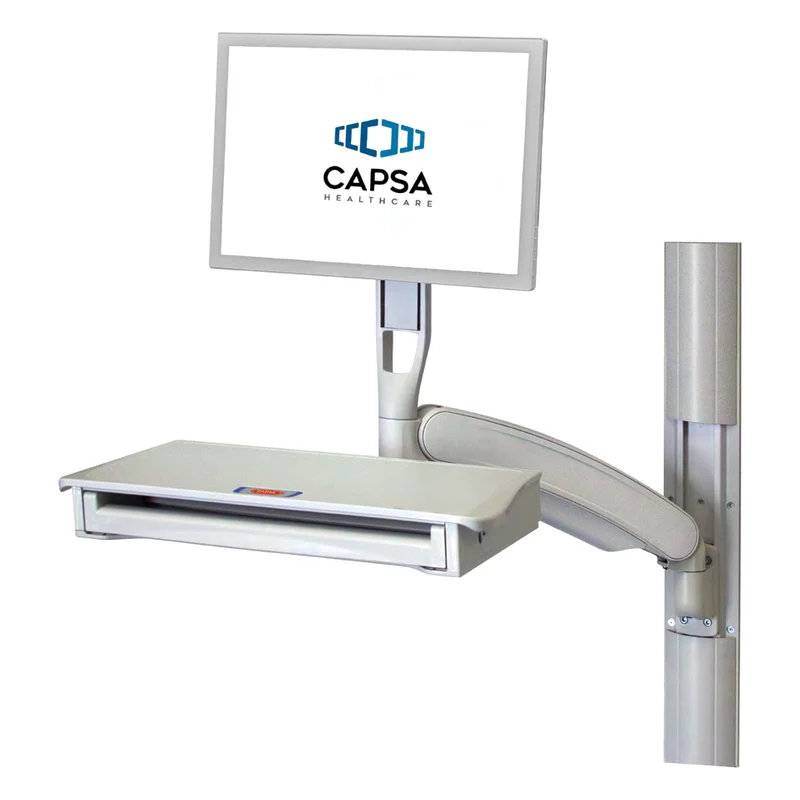

See the Fluid ULT
Capsa presents the Fluid ULT wall arm.
Specifications and configuration
Fluid ULT
20 lb (9.1 kg)Weight capacity
Fluid UHD
35 lb (15.9 kg)Weight capacity
Same on both versions
- Vertical arm adjustment
- 22 in (55.9 cm)
- Vertical monitor adjustment
- 9.5 in (24.1 cm)
- Monitor rotation
- 180°
- Keyboard pivot
- 180°
- Monitor tilt
- More than 40°
- Reach with the extension arm
- Up to 62 in (157.5 cm)
- Profile when stored
- Under 9.5 in (24.1 cm)
- Monitor mount
- VESA 75 and 100 mm
- Wall track
- 34 or 48 in (86.4 or 121.9 cm)
- Work surface
- 11.25 × 22 in (28.6 × 55.9 cm)
- Mouse surface, left or right
- 8.5 × 9.65 in (21.6 × 24.5 cm)
- Keyboard tray
- 8.75 × 18.5 in (22.2 × 47 cm)
- Versions
- Fluid ULT, up to 20 lb (9.1 kg); Fluid UHD, up to 35 lb (15.9 kg), shown by Capsa with two monitors
- Mounting
- On previously installed, industry compatible wall tracks, or on the 34 or 48 in (86.4 or 121.9 cm) track supplied
- Design
- Free-float counterbalance; pivot limits set by pin; concealed cable management; neutral colour
- Optional accessories
- Extension arm, Fluid Arm Tech Box 13.5 × 11.5 × 3 in (34.3 × 29.2 × 7.6 cm), small CPU holder for CPUs 1.25 to 4 in (3.2 to 10.2 cm) thick, VESA mount mouse holder, LCD access pack, scanner shelf with holder
- Computer and monitor
- Not included
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
- Service
- LIOMAR is your first point of contact and works with Capsa Healthcare on repairs.
Accessories
Name the ones you need in your quote request.

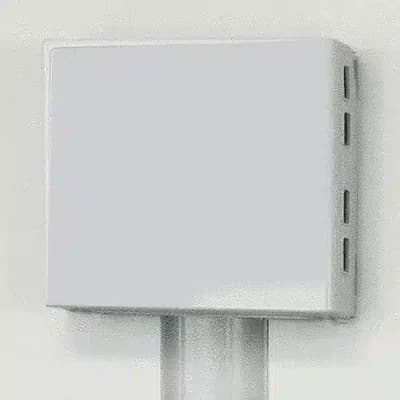

- Fluid Arm Tech Box

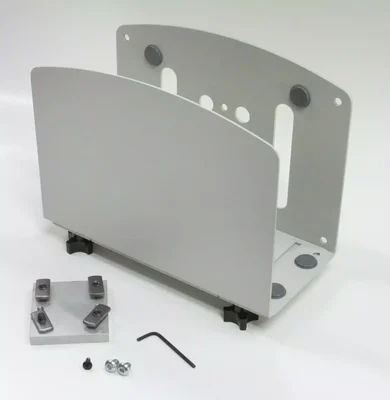

- Small CPU holder

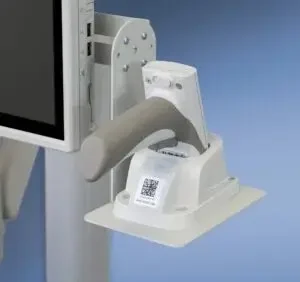

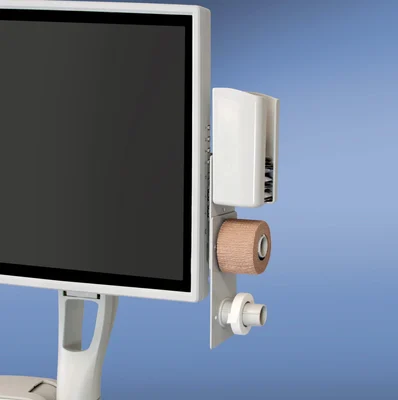

- Scanner shelf with holder
- LCD access pack
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the Fluid Wall Arm
Can the Fluid wall arm hold two monitors?

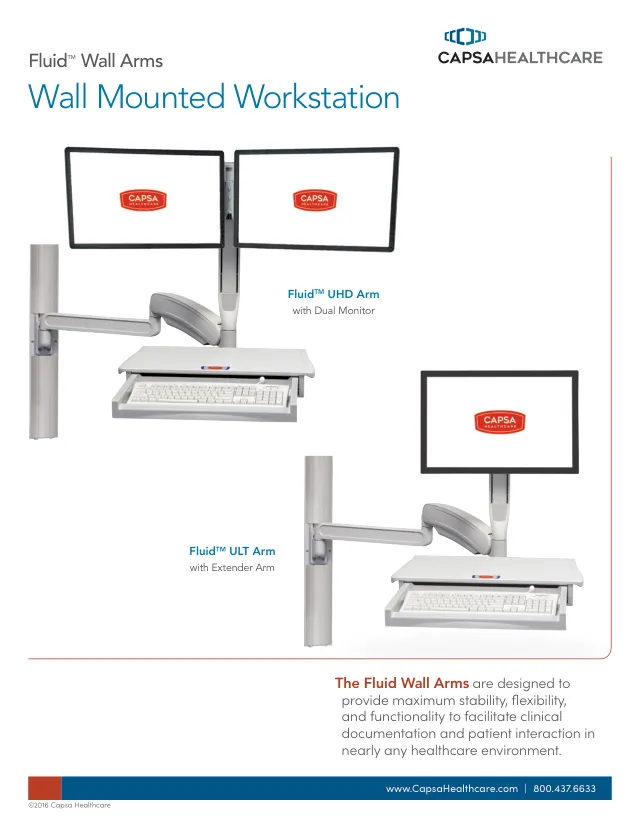

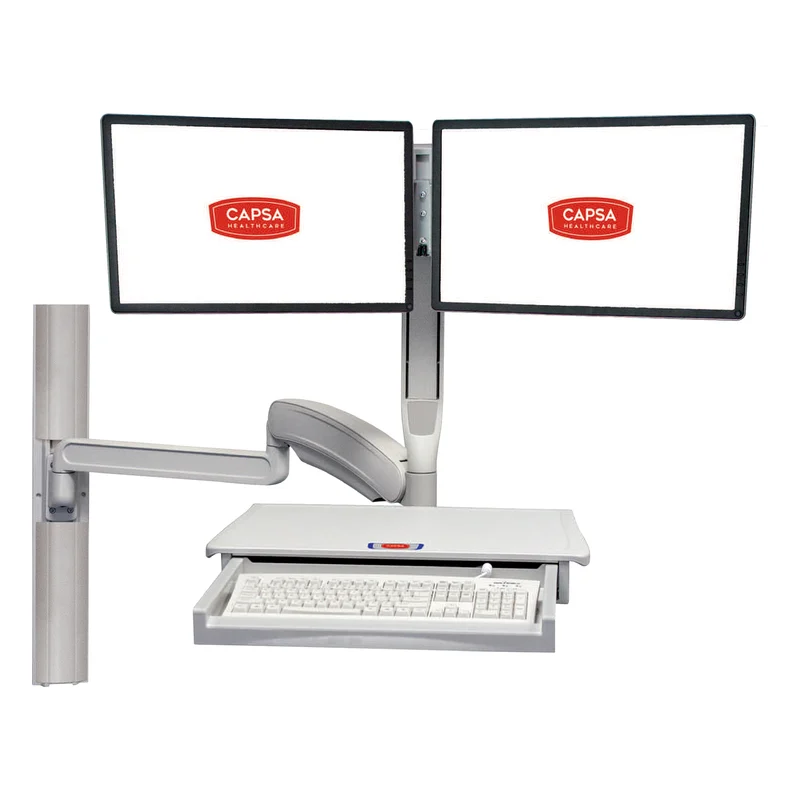

Yes, in its Fluid UHD version, which Capsa shows with two monitors (sheet C-365). The UHD carries up to 35 lb (15.9 kg) of equipment, against 20 lb (9.1 kg) for the Fluid ULT. The monitors are not included: send us their models and weights, and we confirm the version with your quote.
Does the Fluid wall arm have a keyboard tray?
Yes. The keyboard tray, 8.75 × 18.5 in (22.2 × 47 cm), stores under the work surface and tilts down. It pivots 180°, independently of the monitor. The 11.25 × 22 in (28.6 × 55.9 cm) work surface has a mouse surface on the left or right.
Can the Fluid wall arm be mounted on an existing wall track?
Capsa built the Fluid to mount on previously installed, industry compatible wall tracks. It also comes with a 34 or 48 in (86.4 or 121.9 cm) track. Send us a photo and the brand of your current track, and we confirm the fit with Capsa before your quote.
How much does the Fluid Wall Arm cost?
The price depends on the version (ULT or UHD), the wall track, the extension arm, the accessories and the number of workstations. Request a quote and a representative replies within two business days. The computer and monitor are not included, and the lead time is confirmed with your quote.
