HTR101 Wall-Mounted Digital Stadiometer
A digital height rod that mounts on the wall, for hospitals, clinics, schools and fitness centres. The headpiece glides along the rail, works with one button and shows the height in LED digits.
- User-selectable measuring span of 51 in (130 cm), up to 91 in (230 cm)
- Accuracy of ± 0.1 in, in inches, feet and inches, or centimetres
- Auto-hold keeps the height on the display after the headpiece is raised
- 2 AAA batteries, included: 10,000 height measurements per set
Height on the wall, read at the headpiece
The headpiece glides along the rail and works with one button. Its bright LED digits stay easy to see, even at maximum height.
Switch the reading between inches, feet and inches, or centimetres, to match the chart your team fills in.

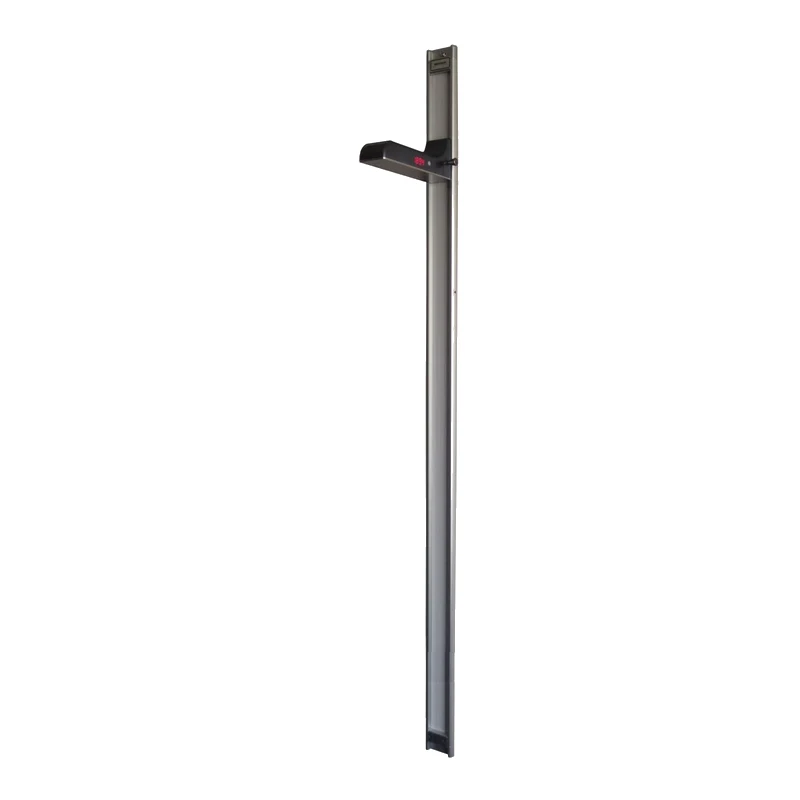

An anodized aluminum rail 57.5 in (146 cm) high and 0.5 in (1.3 cm) deep, with no visible wires. The headpiece extends 8 in (20.3 cm) from the rail.
Features of this stadiometer

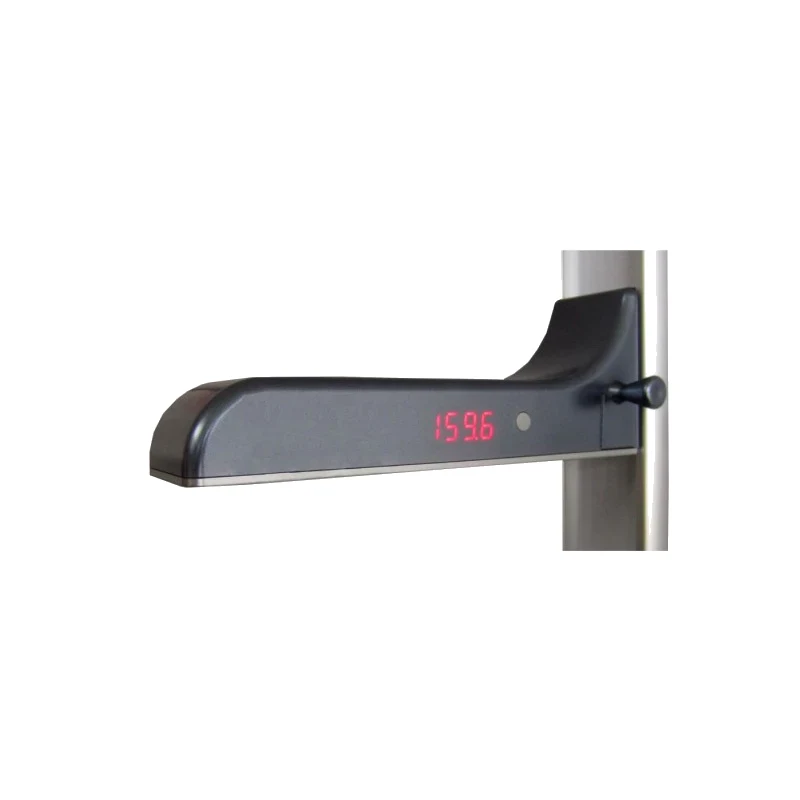

One-button headpiece
The headpiece glides along the rail and takes the reading with a single button.
Auto-hold
The height stays on the display while the headpiece is raised out of the way, so it can be noted afterwards.

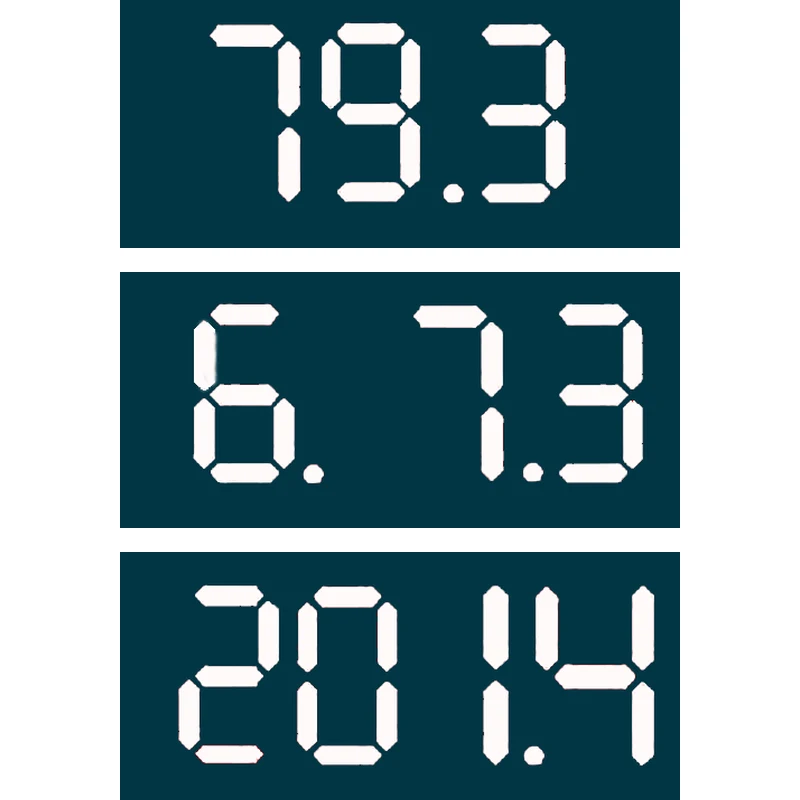

Three display formats
Bright LED digits in inches, feet and inches, or centimetres, easy to switch from one to the other.
Automatic turn-off
The HTR101 turns itself off. A set of 2 AAA batteries gives 10,000 height measurements, according to Befour.
See the HTR101 in use
Befour’s tutorial shows how the HTR101 takes a height reading.

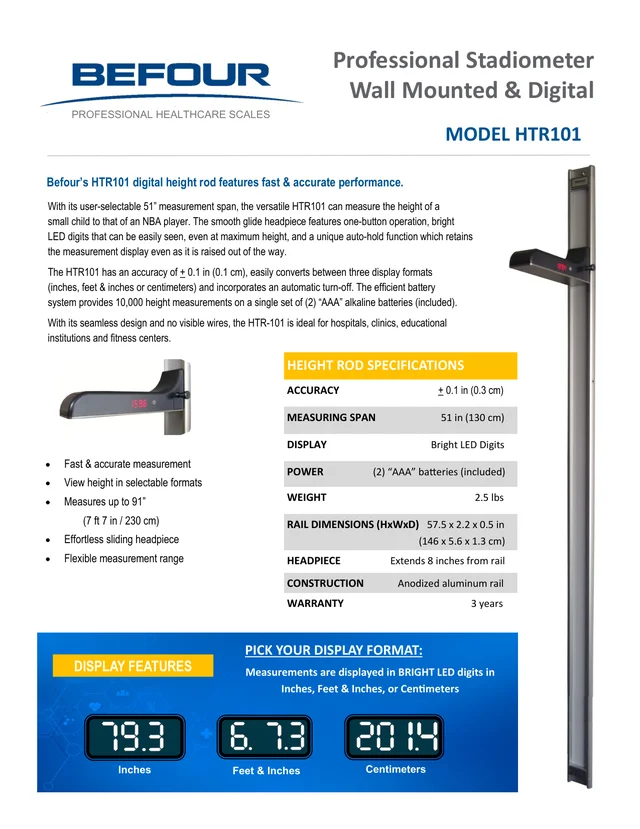

Specifications
HTR101
51 inMeasuring span
- Span in centimetres
- 130 cm
- Maximum height
- 91 in (230 cm), or 7 ft 7 in
- Accuracy
- ± 0.1 in
- Rail (H × W × D)
- 57.5 × 2.2 × 0.5 in (146 × 5.6 × 1.3 cm)
- Headpiece
- Extends 8 in (20.3 cm) from the rail
- Weight
- 2.5 lb (1.1 kg)
- Construction
- Anodized aluminum rail
- Display
- Bright LED digits, on the headpiece
- Display formats
- Inches, feet and inches, or centimetres
- Functions
- One-button operation, auto-hold, automatic turn-off
- Power
- 2 AAA alkaline batteries, included
- Battery life
- 10,000 height measurements per set
- Manufacturer warranty
- 3 years, from Befour
About the manufacturer
Befour designs and builds professional healthcare scales: portable, bariatric, neonatal, wheelchair and height-and-weight models. Its scales are built in anodized aluminum and share one display console, so your team learns it once.
LIOMAR distributes Befour scales in Canada. We prepare your quote, deliver your scales and remain your first point of contact, working with Befour for service.
Questions about the HTR101
How accurate is the HTR101 stadiometer?
Befour lists an accuracy of ± 0.1 in for the HTR101. The height appears in bright LED digits on the headpiece, and auto-hold keeps it on the display while the headpiece is raised out of the way.
Is the HTR101 more accurate than a measuring tape?
Befour does not publish a comparison with a measuring tape. What it documents for the HTR101: a headpiece that extends 8 in (20.3 cm) from the rail and glides along it, one-button operation, and a digital reading with an accuracy of ± 0.1 in. The height is read on the display, not on a mark.
What heights can the HTR101 measure?
The HTR101 has a user-selectable measuring span of 51 in (130 cm) and measures up to 91 in (230 cm), or 7 ft 7 in. Befour presents it for heights from a small child to a very tall adult. The anodized aluminum rail measures 57.5 × 2.2 × 0.5 in (146 × 5.6 × 1.3 cm).
Which units does the HTR101 display?
Inches, feet and inches, or centimetres, in bright LED digits; the HTR101 converts easily between the three. It runs on 2 AAA alkaline batteries, included, for 10,000 height measurements per set, and turns itself off.
How much does the HTR101 stadiometer cost?
The price depends on the quantity. Request a quote and a representative replies within two business days.
Other medical scales
MX805 Measurement Station
Capacity 750 lb (340 kg) · Reads to 0.1 lb (0.05 kg)
MX905 Opti-Height Measuring Station
Capacity 750 lb (340 kg) · Reads to 0.1 lb (0.05 kg)
MX910 Opti-Height Measuring Station
Capacity 1,000 lb (450 kg) · Reads to 0.1 lb (0.05 kg)

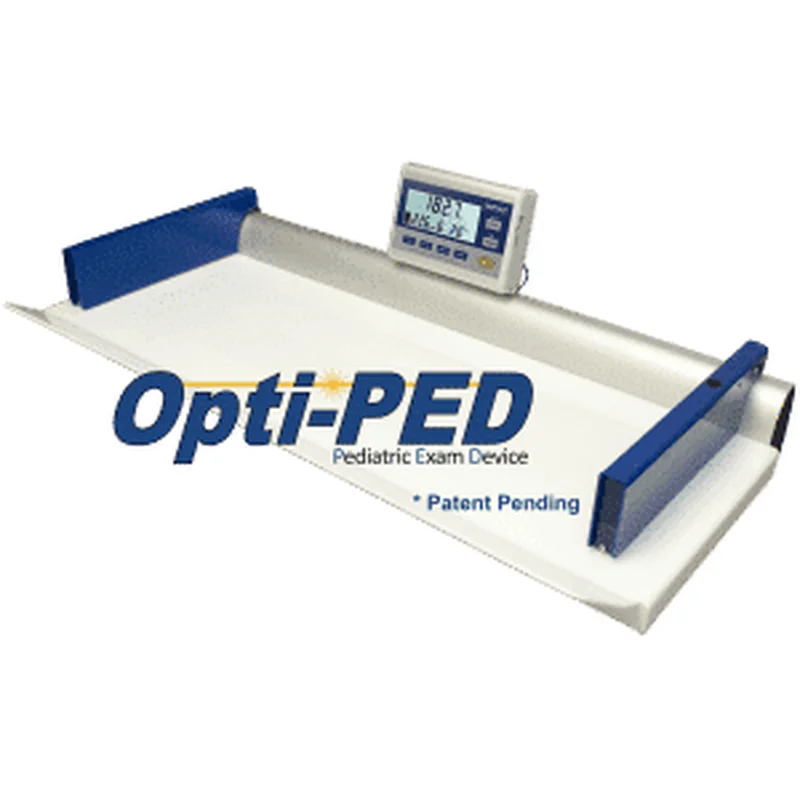

MX282 Opti-PED Infant Scale
