By Capsa Healthcare

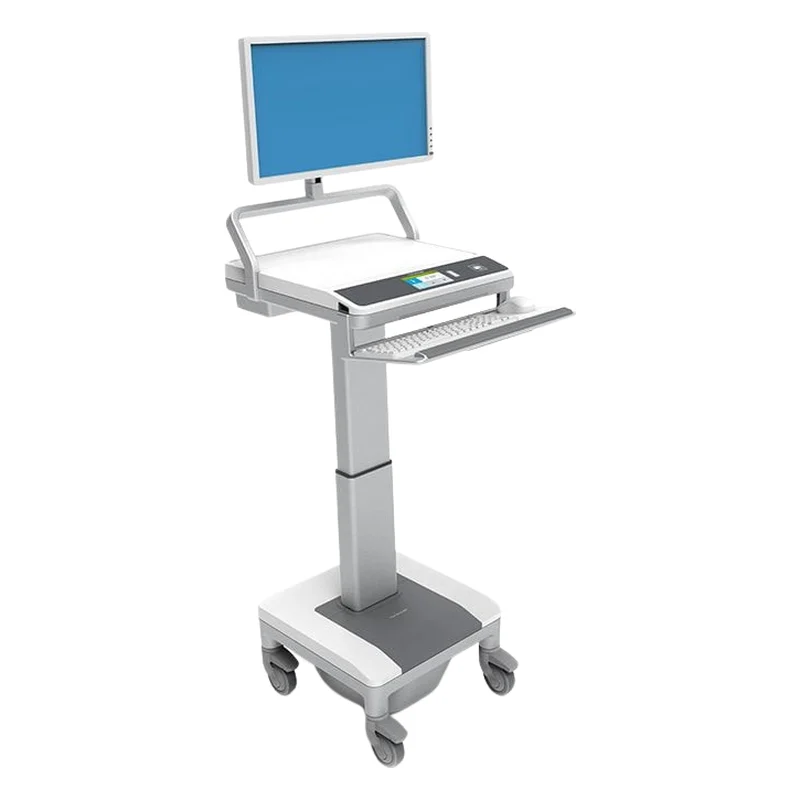

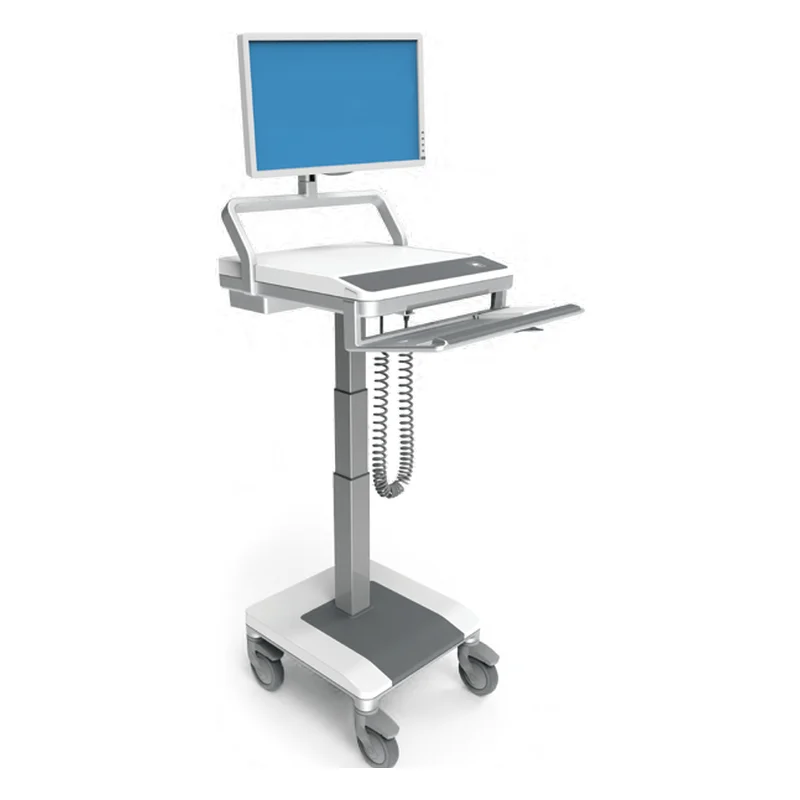

T7 Powered Mobile Technology Cart
A powered technology cart built for one-hand operation. Capsa lists it for patient triage, physician rounds, patient registration, outpatient areas, ICU, operating rooms and med/surg. LIOMAR helps you choose the drawers and the accessories for your workflow. The computer and monitors are not included.
- AutoFit sets the work surface, keyboard and display together for each user, over a 20 in (50.8 cm) height range
- Up to two monitors weighing up to 26 lb (11.8 kg) together
- 120 VAC pure sine wave power, 150 W continuous; lithium iron phosphate battery that recharges in 2.5 h
- Work surface of 19.375 × 15.5 in (49.2 × 39.4 cm) on an 18.1 × 19.5 in (46 × 49.5 cm) base; computer not included
Adjusted and steered with one hand

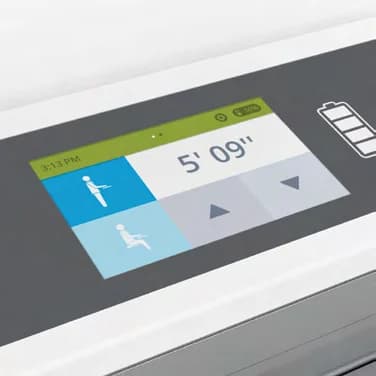

Each caregiver enters a height and AutoFit moves the work surface, keyboard and display together, over 20 in (50.8 cm).
Power Track steering helps move the cart with one hand in patient rooms and corridors.
The wires run inside an encased management system, which reduces clutter around the cart.
The monitor raises and lowers independently of the work surface.
Features of this technology cart
AutoFit height
One combined adjustment of the work surface, keyboard support and display, set to the height each user enters.
Power Track steering
Steering for one-hand control in tight spaces and corridors.
Lithium iron phosphate battery
Recharges in 2.5 h and is rated for 2,000 cycles at 80% depth of discharge, with a charge level indicator.
Room for two monitors
Two monitors up to 26 lb (11.8 kg) together, on a cross bar (option), with height set apart from the work surface.

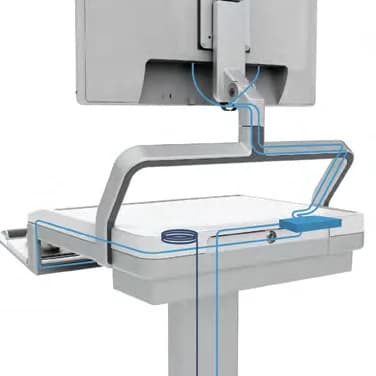

Encased wiring
The cables run inside the cart, for less clutter and a streamlined design that is easy to clean.
See the T7
Capsa presents the T7 Powered Technology Cart.
Specifications and configuration
T7 Powered
Up to 2, 26 lb (11.8 kg) togetherMonitors
- Computer, max.
- 17.35 × 12.3 × 2.25 in (44 × 31.25 × 5.7 cm)
- Opening for a laptop screen
- 16.8 in (42.6 cm) wide
- Base
- 18.1 × 19.5 in (46 × 49.5 cm)

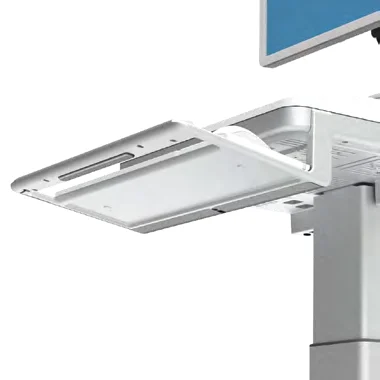

- Work surface
- 19.375 × 15.5 in (49.2 × 39.4 cm)
- Work surface height
- 27.6 to 47.5 in (70 to 120.7 cm)
- Height range
- 20 in (50.8 cm)
- AC power, 120 VAC version
- 120 VAC input; 120 VAC pure sine wave output, 60 Hz; 150 W continuous, 225 W peak
- AC power, 230 VAC version
- 230 VAC input; 230 VAC pure sine wave output, 50 Hz; 150 W continuous, 225 W peak
- Battery
- Lithium iron phosphate, 12.8 V output; recharges in 2.5 h; 2,000 cycles at 80% depth of discharge; charge status and level indicator
- Height adjustment
- AutoFit, motorized; no more than 2 min of continuous use, followed by 18 min of rest
- Models
- T7 Powered Cart; T7 Powered Laptop Cart, with an opening for the laptop screen
- Drawers (option)
- Up to 5 front-mounted drawers: no lock, key lock or electronic keypad lock; or a rear-mounted single drawer with an electronic keypad lock
- RFID reader
- Standard RFID readers can be secured under the cover
- Optional accessories
- Sharps container holder, utility basket, printer shelf, universal scanner bracket, glove box holder, standard or locking utility drawer, CPU holder, rear accessory rail, cross bar for 2 monitors, VESA accessory rail mount (19 or 27 in), accessory rail scanner mount, code scanner bracket, VESA plates, drop down VESA plate, camera mount
- Computer and monitors
- Not included
- Manufacturer warranty
- Provided by Capsa Healthcare. Terms are confirmed with your quote.
- Service
- LIOMAR is your first point of contact and works with Capsa Healthcare on repairs.
Accessories
Name the ones you need in your quote request.

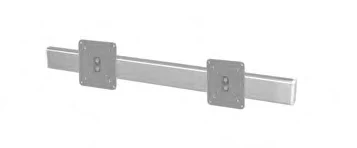

- Cross bar for 2 monitors

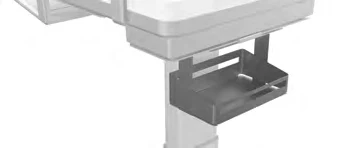

- CPU holder
- Standard utility drawer

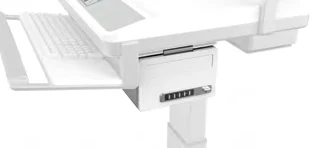

- Locking utility drawer
- Printer shelf
- Utility basket
- Universal scanner bracket
- Glove box holder
- Sharps container holder
- Rear accessory rail
- Accessory rail scanner mount

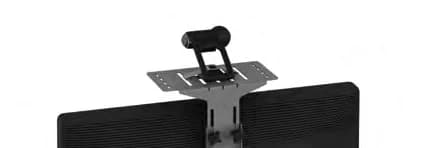

- Camera mount
About the manufacturer
Capsa Healthcare makes medication carts and cabinets, medical carts, computing workstations and medication management solutions for hospitals and long-term care homes. Its products are installed in more than 70 countries.
LIOMAR distributes Capsa products in Canada. We prepare your quote and remain your first point of contact after delivery, working with Capsa on repairs.
Questions about the T7 Powered cart
Can the T7 Powered cart hold two monitors?
Yes. Capsa rates the T7 for up to two monitors weighing up to 26 lb (11.8 kg) together, and offers a cross bar for 2 monitors as an accessory. The monitors raise and lower independently of the work surface. The monitors are not included: send us their models and we confirm the mount with your quote.
How long does the T7 battery take to recharge?
Capsa states 2.5 h for a recharge of the lithium iron phosphate battery, which is rated for 2,000 cycles at 80% depth of discharge. An indicator shows the charging status and the battery level. The cart supplies 120 VAC pure sine wave power to your equipment, 150 W continuous and 225 W peak.
How does AutoFit adjust the T7 to each user?
Each caregiver enters a height on the cart, and AutoFit moves the work surface, keyboard support and display together. The work surface goes from 27.6 to 47.5 in (70 to 120.7 cm). Capsa asks that the height motor run no more than 2 minutes in a row, then rest for 18 minutes.
Is there a laptop version of the T7?
Yes. Capsa builds a T7 Powered Laptop Cart, with an opening 16.8 in (42.6 cm) wide for the laptop screen. The standard T7 takes a computer up to 17.35 × 12.3 × 2.25 in (44 × 31.25 × 5.7 cm). Tell us which computer you use and we confirm the model with your quote.
How much does the T7 Powered Mobile Technology Cart cost?
The price depends on the model, the drawers, the accessories and the number of carts. Request a quote and a representative replies within two business days. The computer and monitors are not included, and the lead time is confirmed with your quote.
Other mobile workstations
Request a quote for the T7 Powered cart
Tell us how many carts you need, the equipment they will carry, and the drawers and accessories you want.
- A reply within two business daysA representative contacts you to understand your unit, your equipment needs and your timeline.
- Equipment that fits your unitWe suggest models for your space, your care team and your purchasing process.
- Documents for your purchasing teamSpecifications and the documentation your purchasing committee or tender requires.
- Your first contact after deliveryFor service and questions, you reach the same team.
